Detailed Product Description
|Product Name:||3015 Fully Covered Metal Fiber Laser Cutter With Exchange Table||Laser Power:||1000w - 3000W|
|Laser Wavelength:||1080nm||Working Area:||3000*1500mm|
|Laser Cutter Head:||Raytools||Chiller:||S&A|

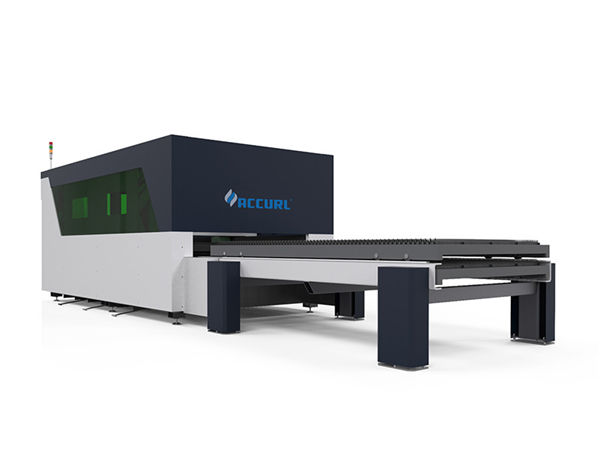

Full closed protection improves using security; laser protection glass isolates laser radiation to human beings; automatic collection system of smokes and dusts is environment friendly; intelligent monitoring system reduces accident rate, making us enjoy beauty and health in cutting process.
It has industrial-scale machine body, the overall sheet metal design and the whole welding structure.It is machine processed after annealing and Then the vibration aging is done by which way it can completely eliminate the stress of welding and processing .Good rigidity, high precision, and the machine will be of no deformation with long time use.
X Y Z axis adopts imported high precision rack and liner guide rails, to make sure smooth transmission and high precision. Equipped with imported original servo motor to ensure the high precision, high speed, high torque, large inertia, stable and durable performance. Also it guarantees the high speed and acceleration of the whole machine.
Specially used for cutting 0.5-20mm carbon steel, 0.5-10mm stainless steel, 0.5-6mm brass, 0.5-10mm aluminum, 0.5-4mm copper, as well as galvanized steel, electrolytic steel and silicon steel etc.
Fiber Laser Cutting Machine Advantages
1) Fiber laser cutting is the fastest process for thin sheet metal.
2) A “clean cut” surface quality is obtained.
3) Reflective materials like aluminium,copper and brass can be cut with ease.
4) Parts process cost is very low.
5 ) Little to no maintenance costs.
6) Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and
protection glasses over long periods. There are no other consumable costs.
7) Resonator life is over 100,000 working hours.
8) Double ball screw close-loop system and imported open-type CNC system, ensure high accuracy and high working efficiency during high speed cutting.
9) After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy. Light crossbeam can give equipment a high operation speed, improving processing efficiency to ensure processing quality.
10)Surrounded by baking paint silver decoration,coordinated with diamond cutting tempered glass and alpine white sheet metal design, the international design of the machine is accepted by global consumer groups.
The workplace is neat, orderly and space-saving.
|Laser output power||1000W|
|Maximum processing range||3000 *1500mm|
|Machine drive mode||imported rack gear and pinon drive|
|Y X. axis positioning accuracy||±0.01mm|
|X.Y axis repeat positioning accuracy||±0.01mm|
|Power supply mode||380V / 50Hz|
|Maximum cutting speed||45m/min|
|Minimum cutting line width||0.02mm|
|Cooling mode||3P Water cooling|
Sheet metal processing, die - cutting board processing, electronics, electrical, aerospace, machinery, elevators, automobiles, ships, tools processing, subway accessories, oil machinery, food machinery, craft gift, decoration, advertising, metal processing and other processing industries.
