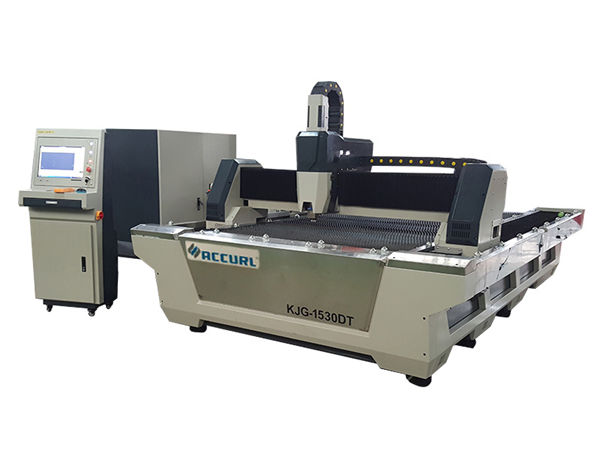

watt metal fiber laser cutting machine for precious metal processing

Product Details

Certification: CE, FDA, IOS9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set

Price: USD

Packaging Details: Wooden Carton

Delivery Time: 30-45 Days

Payment Terms: T/T, Western Union, MoneyGram, L/C

Supply Ability: 100 Sets Per Month

Detailed Product Description

Model:	RL-P5050-150	Laser Power:	150W
Laser Source:	Imported Fiber Laser	Maximum Processing Size:	500*500mm
Maximum Operating Speed:	800mm/s	Control System:	Imported Nc System
Repetitive Positioning Accuracy:	0.001mm	Electric Power Supply:	AC380V 50Hz/5KW
Dimensions(L* W* H):	1280mm1020mm1500mm	HS Code:	8456110090
Transport Package:	Wooden Carton	Weight:	1100KG

Usage

The machine is with imported fiber laser, natural granite base, imported servo motor, high precision cross platform structure.
It is used to cutting and drilling a variety of alloy sheet, sapphire, ceramics and other sheet materials. It is widely applied to
the 5C industry, automobile, LED, precision machinery and so on.

Features

1. Security and Reliability
The machine is high security and reliability of marble base as well as fully enclosed design.

2. High Speed and High Precision
Adopts imported linear motor drive, imported linear guide rail, Cross platform structure, NC system. The machine has good
performance with high cutting speed and smooth corner.

3. Long Using Life
The machine is with long life using the imported fiber laser and high efficiency photoelectric conversion design.

4. Good Cutting Effect
With excellent optical path design, produce a perfect focus spot, small thermal effect.

5. Convenient Operation
Convenient data processing with dedicated lase cutting software. File formats include DXF, PLT, etc. Interface is simple
and friendly, easy operation.

6. CCD can be Optional
Auto-finding point, cut designed graphics.

Applications

The machine is applied to high-speed precision laser cutting and drilling of sapphire, ceramic and other sheet materials. It is widely used for 5C industry, automobile industry, LED industry, precision machinery industry, etc.

Technical parameter

Item	Specification
Model	RL-P5050-150
Laser Source	Imported Fiber Laser
Laser Power	150W
Maximum Processing Size	500mm×500mm
Maximum Operating Speed	800mm/s
Maximum Acceleration	10000 mm/s2
Positioning Accuracy of Table	±0.003mm
Repetitive Positioning Accuracy of Table	±0.001mm
Total Accuracy	±0.03mm
Minimum line width	0.06mm
File Format	.dxf,.plt
Electric Power Supply	AC380V 50Hz/5kW
Dimensions(L x W x H)	1280mm×1020mm×1500mm
Weight	1100kg
Environmental Temperature	10ºC-30ºC
Environmental Humidity	10%-85%RH,Non-condensing
Ground Amplitude	≤5μm
Ground Pressure	60×103 kgf/m2
Control System	Imported NC System
Optional Features	CCD positioning/Automatic loading and unloading mechanism

Why Choose Us

1. Brand Protection

2. Quality Assurance & High cost-effective

3. China manufacturer with competitive price

4. Multi-language service with quick response

5. Engineer overseas service available

6. OEM available

Training

After signing the contract, your company can arrange technologist to our factory or we can arrange engineer to customer's factory. The training content as follow:

a) Common cutting software training;

b) Machine on and off procedures;

c) The significance of control panel and software parameters, parameters range setting;

d) Basic cleaning and maintenance of the machine;

e) Common Hardware Trouble shooting;
