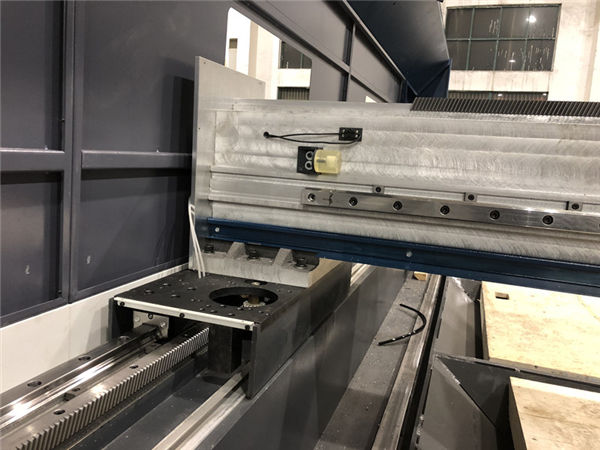

open type metal fiber laser cutting machine maxphotonics source for automotive parts

open type metal fiber laser cutting machine maxphotonics source for automotive parts

Product Details

Certification: CE / FDA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD Negotiable
Packaging Details: Wooden box with iron binding belt
Delivery Time: 30 Work Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000 Units per year

Detailed Product Description

Laser Type:Fiber LaserCooling Mode:Water Cooling
Application:Metal CuttingLaser Power:500W 800W 1000W 2000W
Worktable Max Load:1000kgsLaser Source:Maxphotonics
Certification:CE, ISO, FDATransmission:Ball Screw/Gear Rack Transmission
Floor Space:5.6mX3.2m (fixed Table)Driving Mode:Double Gear Rack Driving

Technical Parameters

Laser sourceGermany IPG; Maxphotonics
Laser power500W 800W 1000W 2000W
Laser wavelength1070nm
Beam quality<0.373mrad
Fiber Laser cutting headSwiss Raytools; Germany Precitec
Working lifeMore than 100000 hours
Motors&DriversYaskawa servo motor made in Japan
Reducer3 sets from Germany
Guide RailsHigh accuracy PMI brand from Taiwan
Transmit systemDual Rack & Pinion type
Rack systemTAIWAN KH-TST
Water ChillerDOLUVO
Control systemGermany PA 8000 / C
Max cutting thickness≤8mm(stainless steel)
≤16mm(carbon steel)
≤4mm(aluminum)
≤2mm(brass)
Position Accuracy±0.03mm/m
Power Consumption12kw/hour
Voltage380V/50HZ,3PH
Carry weight1 Ton
Auxiliary Gas for cuttingOxygen, Nitrogen, Air

Fiber Laser Cutting Machine Application

1.Sheet metal fabrication8. Hardware tools
2. Electrical cabinet9. Advertising
3. Elevator10. Furnitures
4. Automotive parts11. Kitchenware equipment
5. Aviation & aerospace12. Fitness equipment
6. Lighting lamps13. Medical equipment
7. Metal carfts & decoration14. Agricultural and forestry machinery

Fiber Laser Cutting Machine Features

1. Support different images format as Al, DXF, PLT, Gerber, can read standard ISO G codes from MaterCam, Type3 such nesting software.
2. Automatically optimization when open or lead in DXF file, like delete repeated line, merge connected lines, recognize in/out cutting file and file sorting out.User can decide to manually do above work, or let controller do it automatically.
3. Support conventional picture edit functions
4. Following what you see is what you get, to set lead in/out, kerf compensation, merge, bridge, over burning, save gap ….etc
5. Unique function of Preview of cutting work flow.
6. Support segmental pierce, Progressive pierce, Pre-pierce, power pierce,,, separately setting output laser watt, frequency, laser type, air type, pressure, auto cutting height during pierce and cutting.
7. Support to set separate lead in/out speed according to adjustment of laser power.
8. Big storage, allowing user to save all cutting parameters to use it again on same material.
9. Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting. It can go to any point to start there after stop or pause.
10. Same software can support round tube cutting and plate cutting, programming is same, and support intersect cutting.
11. Support to cut at set height, automatically seek edge, and start from outside of workpiece, or lift up when torch is out of workpiece.
12. Powerful expanding capability, over 15 PLC process programming, over 30 programmable processes.
13. Input/output and alarm input are programmable, support wireless remote control, and support internet.

Advantages of Laser Cutting Machine

1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality
2) High cutting speed: Cutting speed is more than 20m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.

Applied materials of 500W 800W 1000W 2000W Fiber Laser Cutting Machine:
Fiber cutter is mainly used for carbon steel cutting, mild steel, stainless steel, silicon steel,aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials. It is an cnc laser cutters can be used to do high precision cutting. It also can be called fiber cutter machine,fiber optic laser cutter,laser cutter for metal,fiber cutter,carbon steel cutting,cnc laser cutters.

Applied Industry of 500W 800W 1000W 2000W Fiber Laser Cutting Machine:
This laser cutter for metal is applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Tag: fiber laser metal cutting machine, stainless steel laser cutting machine
