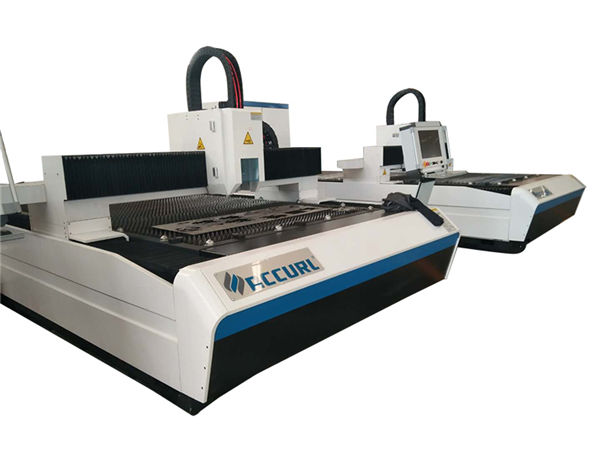

metal sheet industrial laser cutting machine 500w enclosure protection system

metal sheet industrial laser cutting machine 500w enclosure protection system

Product Details

Certification: CE / FDA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD Per SET
Packaging Details: Wooden box with iron binding belt
Delivery Time: 20-30 Work Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 Units per year

Detailed Product Description

Laser Type:Fiber Laser SourceCutting Area:Diameter 20-200mm
Cooling Mode:Water CoolingApplication:Applicable Material
Working Voltage:380V/50HzFocus Method:Following And Automatic Adjust Focus
Transmission Method:Gear And RackLaser Power:500W
Worktable Max Load:1000kgsX/Y Axis Positio:0.05/1000mm
CNC Or Not:YESClass:Class 4 Laser

Product Description

Laser TypeFiber laser
Laser BrandIPG / Maxphotonics
Laser Power500W (1000W / 2000W / 4000W optional)
Working area1500mmX3000mm 1300x2500mm Optional
Working TableFixed Working Table
Control SystemPMAC full-closed loop servo control
Driving ModeDouble gear rack driving
Idle/Processing Speed72m/min / 36m/min
Positioning Accuracy0.05mm
Protection SystemEnclosure protection
Laser HeadPrecitec / Laser Mech
Power SupplyAC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz
Total Power7KW~11KW
Floor Space5.6mX3.2m (fixed table)

Cutting Pipe Detail Specification

Cutting Length6000mm
Diameter20mm-200mm
Min remaining material250mm
X axis230mm
Y axis6500mm
Z axis175mm
Position accuracy0.05mm
Reposition accuracy0.03mm
Max moving speed for X axis40m/min
Max moving speed for Y axis500mm/s
Acceleration1 G
Size(L*W*H)12000*1800*2400mm
Weight3800kg

The whole fiber laser cutting machine for metal consist of machine This system consist of machine tool, motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts, so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Advantage

1. Electric-driver motor in rotary device adjust speed freely, Easy-work, low noisy,high rotary speed,high accuracy.
2. Intersecting line can be cut. Best choice for tubular construction.
3.Imported high precision transmission device which is perfectly work with servo system, thus it can make sure cutting precision and efficiency.
4. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
5. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
6. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
7. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
8. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
9. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
10. Easy operations: fiber line transmission, no adjustment of optical path.

Applicable materials

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applicable Industry

Sheet metal, hardware, kitchenware, electronic, automotive parts, glass, advertising, craft, lighting, decoration, jewelry, etc
Applicable Material:
Specially for carbon steel, stainless steel, galvanized steel, alloy, titanium, aluminum, brass, copper and other metal sheets
