enclosed type cnc fiber laser cutting machine 500w / 1000w high strength

Product Details

Certification: CE, ISO 9000

Payment & Shipping Terms:

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: wooden package

Delivery Time: 15 - 30 working days

Payment Terms: T/T

Supply Ability: 1000 Unit per Month

Detailed Product Description

Product Name:	1000W , 2000W , 3000W , 4000W Fiber Laser Cutting Machine	Laser Type:	Fiber Laser
Working Size:	3000*1500mm	Weight:	3000 Kgs
Package:	Wooden Case	Control Software:	Cypcut
Applicable Material:	Metal Material	Cutting Thickness:	20mm

Introduction of RL3015 model

Enclosed Type Double Worktable Model Fiber laser cutting machine adopts the most sophisticated Germany IPG or SPI or Rofin or Raycus Fiber Laser of China, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with precision ball screws, linear guide drive run.

fiber laser cutting machine produced by RISE LASER adopts international advanced 500w /1000W/2000W/3000W/4000W power fiber laser from IPG ,ROFIN laser of Germany, imported high-precision ball screw, linear guide way and other high efficient and high precise drive mechanism. The precise CNC fiber laser cutting machine integrates imported servo motor with advanced CNC system, is high new tech product with a collection made of laser cutting, precise machinery, CNC technology and other subjects. It is applied for cutting and shaping of carton steel plate, stainless steel plate, aluminum plate and other metal materials. With high speed, high precision, high efficiency, high cost performance and other features, it’s the first choice in cutting machines for industrial metal processing.

Application Industries

Glasses, jewelry,kitchen ware, chassis and cabinet,metal pipe,lamp&lanterns,metal ware,hardware,precision machinery,auto parts,elevator,nameplate,advertisement,electronics,toys and other industries.

Function Advantages

1. Excellent quality of light beam
2. Highly cutting speed: the 2 times by co2 laser cutting machine under the same power.
3. Very high stability and efficiency of photoelectric conversion
4. Very low using cost and maintenance cost
5. Convenient product operation and maintenance
6. Very strong soft optical effects: compact volume and structure
7. Gantry double driving structure, high damping machine tool bed, good rigid,
8.This model adopts imported AC servo system driver and imported transmission system, the moving structure of machine tool adopts imported gear and rack transmission, linear guide track for guiding, ensuring the high speed,high precision and high reliability of equipment.
9. Rack and guide adopt fullly enclosed protective device, which prevents oil free friction movement and dust pollution, enhances using life of transmission parts and ensures the precision of machine tool movement.
10. Professional laser cutting machine, cnc control system, computer operation, can ensure the cutting quality, and more convenient for cutting work.
11. Automatic swiching table configuration, which shortens the standby time, and effectively enhances the working efficiency more than 30%.
12. Fully enclosed protective cover,using safety.(Enclosed Model)

Technical Parameters

Laser Type	Imported Original Fiber Laser
Laser Wavelength	1060nm
Laser Maximum Power	500W	1000W	2000W	3000W	4000W
Max. Cutting thickness	≤8mm	≤12mm	≤16mm	≤18mm	≤20mm
Total Power Consumption	<14KW	<18KW	<22KW	<26KW	<30KW
Working Size	1500X2500mm/1500X3000mm/2000X4000mm
Max.cutting speed	0-30m/min(Depending on the material and thickness)
X, Y, Z Axis Orientation Precision	≤±0.05mm/m
X, Y, Z Axis Repeat Precision	≤±0.03mm /m
Min line width	≤0.15mm
Maximum Empty Running Speed	120m/min
Driving way	Imported servo motor
Transmission way	Y-axis import gear rack double driver, X-axis imported ball screw
Worktable Max Load	1600 KGS
Cooling System	Water Cooling
Continous working time	24 Hours
Environment temperature	0-35°C
Power requirements	380V/3 Phases /50Hz or 60Hz
Power requirements Outer size (LWH)	4500x2000x1800mm

Imported Germany Laser Cutting Head :Selection of Germany Laser cutting head brings Z axis servo function. It’s servo sensor adopts capacitive sensing sensor monitoring and provide cutting auto focusing features of high sensitivity, stability and fastness. With characteristics, it makes the fixed length cutting head body install optical lenses with different focal lengths so that the focus and the nozzle height can be adjusted flexibly.

Consumption Materials Sheet Reference

Number	Materials	Cutting Carbon Steel Plate(1mm)	Cutting Stainless Steel or Aluminum Plate(1mm)
			Bottle Nitrogen	Liquid Nitrogen
1	Power consumption	USD 0.58 /hour
2	Laser gas consumption	0
3	Cutting auxiliary gas consumption	USD1.1 / hour	USD9.5 / hour	USD4.7/ hour
4	Protective Mirror	1 month / pc
5	Focusing lens consumption	1 month/pc
6	Cutting nozzle consumption	1 month/ pc

Product Application

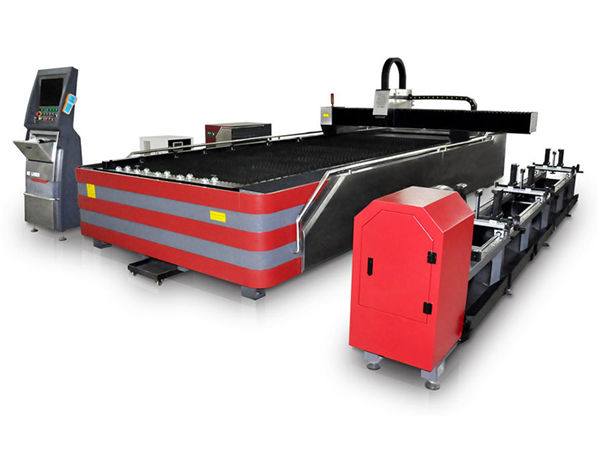

Application: It can cut pipe, squre tube, and various special-shaped pipe cutting.
Diameter for tube:20-200mm
Cutting length: 6m/4m etc
Cutting thickness with 500W fiber source: 3mm stainless steel, 6mm carbon steel, 2mm copper, 2mm aluminum etc, 2.5mm galvanised plate etc.

FAQ

Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else.
