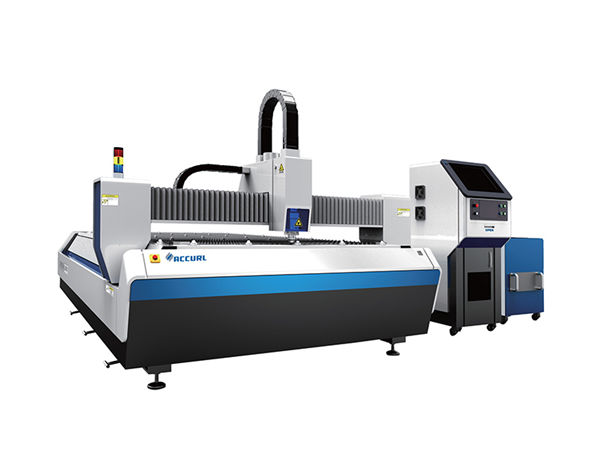

middle power stainless steel laser cutting machine ,1500w laser sheet cutting machine

middle power stainless steel laser cutting machine ,1500w laser sheet cutting machine

Product Details

Certification: CE / FDA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD Negotiable
Packaging Details: Wooden box with iron binding belt
Delivery Time: 15 - 30 Work Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 Units per year

Detailed Product Description

Cutting Area:1500*3000mmCooling Mode:Water Cooling
Laser Power:1500WControl Software:Cypcut
Condition:NewWorktable Max Load:1000kgs
CNC Or Not:YesLaser Wavelength:1060-1080nm
Positioning Accuracy:±0.05 MmWorking Voltage:380V/50Hz

Product Description

1. The machine is welded with a high-intensity whole sheet, and after high temperature annealing,the machine can be used for 20 years without any deformation.
2. With imported precision gear and rack, linear guide rail and transmission,the machine tool is of high precision, high efficiency and high stability.
3. Equipped with advanced wireless handheld terminal,the machine can be operated with remote control.
4. The equipment adopts the laser special speed matching system, high performance servo motor drive, is the integration of pneumatic, mechanical, photoelectric, numerical control and other advanced technologies as one of the high-tech products.


1. Excellent overall performance, changeable working tables, 7 seconds to finish high speed changing, improve working efficiency of more than 48%.
2. The machine tool includes loading area and processing area, standard configuration is changeable working tables, auto change the workpiece between processing area and loading area by motor, convenient to upload and download. With the design of changeable working table, could prepare the next uploading while processing, highly improved working efficieny.
3. Equipped with exhaust device, have good exhausting effect and little pollution.
4. Small occupied area, high system integration, convenient to operate and maintenance, 24 hours continuous working.
5. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.

Fiber Laser Cutting Machine Different Laser Sources Comparing

Model of Laser SourceFiberCO2Disc
Electro-optical Conversion Efficiency30%10%15%
Max. Output50Kw20Kw8Kw
Life of Diode Pumped>100,000NA.10,000
Occupied Area(4/5Kw)<1M23M2>4M2
Maintenanceno needneedOften
Soft Processingmore suitableunsuitablesuitable
Absorption rate%--steel351235
Absorption rate%--aluminum727
Replaced PartsHigh brightness semiconductor laser broadband single core, more than 100,000 hours of pump. Damage to one of the semiconductor does not affect the normal work of the laser, but less and less power, because each semiconductor pump sources are used to separate each other.Laser work requires gas
supplement, reflection lens replacement.
Semiconductor Bar (array) maximum pulse model 5000 hours or 10000 hours continuous mode. Laser use the pump sources are used in the process of often need to change, each time change need to be between $200,000-230,000.

Applied materials of 1500W Fiber Laser Cutting Machine

Fiber cutter is mainly used for carbon steel cutting, mild steel, stainless steel, silicon steel,aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials. It is an cnc laser cutters can be used to do high precision cutting. It also can be called fiber cutter machine,fiber optic laser cutter,laser cutter for metal,fiber cutter,carbon steel cutting,cnc laser cutters.

Technical Parameter

Working Area3000*1500mm
Controller+Heigh followerCypcut
Laser SourceFiber Laser Source 1500W
Wave Length1070nm±10nm
Laser HeadOptional
Gear and RackGermany
Guide RailTaiwanese HIWIN
Positioning Precision≤±0.04mm
Cutting Thickness1-20mm
Max cutting speed40000mm/min(according to materials)
Working voltageAC220V/110V±10% 50HZ/60HZ
Min line Width≤0.12mm
TransmissionYaskawa servo 850W+FASTON reducer
Z axisYaskawa 400W+brake
CoolingWater Cooling
Structure10mm Thickness Welded steel tube,Aluminium Alloy Gantry
Power Consumption≤7.5KW

Technical Parameter: Working Area	3000*1500mm Controller+Heigh follower	Cypcut Laser Source	Fiber Laser Source 1500W Wave Length	1070nm±10nm Laser Head	Optional Gear and Rack	Germany Guide Rail	Taiwanese HIWIN Positioning Precision	≤±0.04mm Cutting Thickness	1-20mm Max cutting speed	40000mm/min(according to materials) Working voltage	AC220V/110V±10% 50HZ/60HZ Min line Width	≤0.12mm Transmission	Yaskawa servo 850W+FASTON reducer Z axis	Yaskawa 400W+brake Cooling	Water Cooling Structure	10mm Thickness Welded steel tube,Aluminium Alloy Gantry Power Consumption	≤7.5KW

Performance for 1500W Fiber Laser Cutting Machine

1.The machine enjoys outstanding performances with high cutting speed, high efficiency, safety and stability. And diode pump solid state laser has the advantage of longer working life, free maintenance and the highest photo-electric conversion efficiency. It also ensures a small divergence angle and light beams of good quality.
2. The light spot enjoys good quality and small heat deformation. Besides, cutting seams are even and nice.
3. After tempering treatment, steel frames with high rigidity are of high vibration-absorbed performance with tempering treatment. And frames with gantry structure are one-step processed in large CNC gantry machining center. With optimized structure, the machine enjoys stability and high accuracy.
4. Imported servo motors and sophisticated direction transmission mechanism ensure high steadiness and accuracy.
5. An intuitive human-machine interface (HMI) with many practical functions is easy to operate.
6. An imported ball screw and linear guides ensure transmission and direction.
7. The sealed cutting head automatically tracks work pieces and has the function of anti-collision.
8. The power supply of the machine is designed with automatic safety protection, and features fault alarm.
9. With fashionable, delicate and artistic design, the compact machine covers smaller floor area without scattered parts. And it’s easy to operate the machine.
