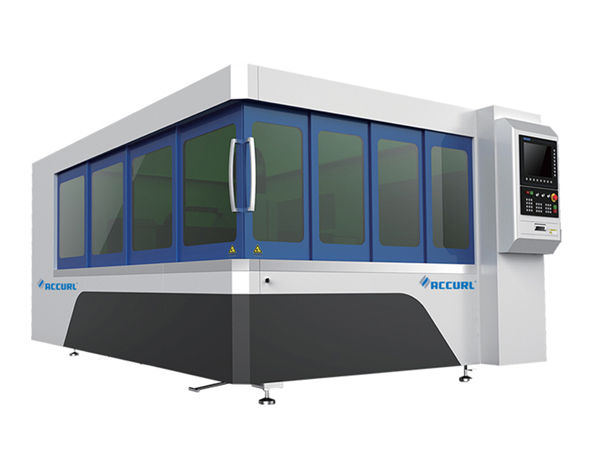

500w metal fiber laser cutting machine blade table with light path system

Product Details

Certification: CE / FDA

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET

Price: USD Negotiable

Packaging Details: Wooden box with iron binding belt

Delivery Time: 15 - 30 Work Days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 2000 Units per year

Detailed Product Description

Laser Type:	Fiber Laser	Cutting Area:	1500*3000mm
Cooling Mode:	Water Cooling	Application:	Metal Material Cutting
Working Voltage:	380V/50Hz	Working Table:	Blade Table
Laser Power:	500W	Positioning Accuracy:	±0.05 Mm

Product Description

1. Stability and reliability of light path system and control system
2. Imported original fiber lasers,high and stable function,lifespan is over 100000 hours
3. Higher cutting quality and efficiency ,cutting speed is up to 80m/min with appearance and beautiful cutting edge
4. German high performance reducer,gear and rack;Japanese guide and ball screw. Applicable Industry and materials :fiber laser cutting machine application:metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevatormanufacture, special vehicles, household appliances, tools, processing, IT manufacturing, oil machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration advertising, laser surface treatment of foreign processing services, such as all kinds of machinery processing industry.Our fiber laser cutting machine‘s Application Materials:Professional used to cut thin sheet metal, in a variety of high quality 1 - 6mm carbon steel sheet cutting, can also be cutting stainless steel plate, aluminum alloy plate, galvanized sheet, electrolyticplate, silicon steel, titanium alloy, aluminium zinc plate and other metal.

^{What materials can our machine engrave and cut ?}

^{500W fiber laser source}
^Material	^{Thickness(mm)}	^Speed(m/min)	^{Gas pressure(MPA)}	^Gas	^{Cutting Height(mm)}
^{Stainless Steel}	^0.5	^>18	¹	^N2	^0.6
	¹	^8.4~12	^>1.1	^N2	^0.6
	²	^1.8~2.4	^>1.8	^N2	^0.6
	³	^0.84~1.2	^>2.0	^N3	^0.6
^{Carbon Steel}	¹	^8.4~12	¹	^O2	¹
	²	^3~4.2	^0.6~0.8	^O2	¹
	³	^1.5~2.1	^0.25~0.4	^O2	¹
	⁴	^1.2~1.5	^0.15~0.2	^O2	¹
	⁵	^0.9~1.2	^0.15~0.2	^O2	¹
	⁶	^0.72~0.96	^0.1~0.2	^O2	¹

Features

1. Support different images format as Al, DXF, PLT, Gerber, can read standard ISO G codes from MaterCam, Type3 such nesting software.
2. Automatically optimization when open or lead in DXF file, like delete repeated line, merge connected lines, recognize in/out cutting file and file sorting out.User can decide to manually do above work, or let controller do it automatically.
3. Support conventional picture edit functions
4. Following what you see is what you get, to set lead in/out, kerf compensation, merge, bridge, over burning, save gap ….etc
5. Unique function of Preview of cutting work flow.
6. Support segmental pierce, Progressive pierce, Pre-pierce, power pierce,,, separately setting output laser watt, frequency, laser type, air type, pressure, auto cutting height during pierce and cutting.
7. Support to set separate lead in/out speed according to adjustment of laser power.
8. Big storage, allowing user to save all cutting parameters to use it again on same material.
9. Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting. It can go to any point to start there after stop or pause.
10. Same software can support round tube cutting and plate cutting, programming is same, and support intersect cutting.
11. Support to cut at set height, automatically seek edge, and start from outside of workpiece, or lift up when torch is out of workpiece.
12. Powerful expanding capability, over 15 PLC process programming, over 30 programmable processes.
13. Input/output and alarm input are programmable, support wireless remote control, and support internet.

^{Technical Parameter}

^{Working Area}	^3000*1500mm
^{Controller+Heigh follower}	^Cypcut
^{Laser Source}	^{Fiber Laser Source 500W}
^{Wave Length}	^1070nm±10nm
^{Laser Head}	^Optional
^{Gear and Rack}	^Germany
^{Guide Rail}	^{Taiwanese HIWIN}
^{Positioning Precision}	^≤±0.04mm
^{Cutting Thickness}	^1-6mm
^{Max cutting speed}	^{40000mm/min(according to materials)}
^{Working voltage}	^{AC220V/110V±10% 50HZ/60HZ}
^{Min line Width}	^≤0.12mm
^Transmission	^{Yaskawa servo 850W+FASTON reducer}
^{Z axis}	^{Yaskawa 400W+brake}
^Cooling	^{Water Cooling}
^Structure	^{10mm Thickness Welded steel tube,Aluminium Alloy Gantry}
^{Power Consumption}	^≤7.5KW

Applied materials

Fiber cutter is mainly used for carbon steel cutting, mild steel, stainless steel, silicon steel,aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials. It is an cnc laser cutters can be used to do high precision cutting. It also can be called fiber cutter machine,fiber optic laser cutter,laser cutter for metal,fiber cutter,carbon steel cutting,cnc laser cutters.
