stainless steel fiber laser tube cutting machine 100mm z axis path 380v three phases

Product Details

Certification: ISO9001:2008, CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET

Price: USD negotiable

Packaging Details: 1.Whole film packaging machine 2. Anti-collision with whole machine foam package edge 3.Plywood wooden box with metal belt

Delivery Time: 30 work days

Payment Terms: T/T, MoneyGram, Western Union, L/C

Supply Ability: 2000 units

Detailed Product Description

Product Name:	Plate And Tubes Fiber Laser Cutting Machine	Laser Type:	Fiber Laser
Laser Power:	500W	Application:	Tube Cutting
Cutting Thickness:	0-25mm	Cutting Area:	1500*3000mm
Cutting Speed:	Adjustable	Cooling Mode:	Water Cooling
CNC Or Not:	Yes	Z Axis Path:	100mm
Repeat Position Precision:	0.05	Frequency:	50/60Hz

One Machine,Dual Use, Can Cut Metal Tube and Metal Plate by One Time

In order to meet the increasingly complex needs of consumers, Rise Laser is targeted at market demand, independently developed RL3015 sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.
1. 300w, 500w, 800w, 1000w, 2000w 3000w Maxphotonics fiber optic laser optional
2. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials ,etc..
3. China Top manufactuers, best price and quality, with CE & FDA & ISO certificates
4. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm
5. RL3015 Tube pipe fiber laser cutting machine, 1500*3000mm
6. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine

Main Features

1. Compact design facilitating a wide variety of applications.
2. CNC with laser control function.
3. Resonator with reflective sensors.
4. Simple program for pieces and cutting plans with automatically adapted feed speed and power output for each piece, using CNC.
5. Highly dynamic equipment.
6. Rigidity: high strength transfer due to stability of construction.
7. Durability: enclosed drivers.
8. Accessibility: spare parts service
9. Applications primarily suited for cutting stainless, carbon, aluminum, titanium, and most non-ferrous metals.
10. Fiber laser power source options from 300W to 3KW
11. Fiber offers reduced maintenance requirements and operating costs compared to CO2
12. Position acccuracy <+/- 0.04mm
13. Japanese servo motors & drivers
14. Drive system X-axis ball screw drive, Y-axis square rail with rack and pinion gear
15. Working voltage: 380V,50Hz /60Hz
16. 2 year Warranty covers laser machine parts. Ask about our optional warranty extensions

Laser Source

Fiber laser power : 500W, 800W, 1000W, 1500W, 2000W, 3000W (Optional)
Working size : 3000*1500mm
X and Y positioning accuracy : +-0.05mm
Transmission mode : import Germany Atlanta high precision gear and rack with double driving rack fiber laser cutting machine

Technical Parameters

Cutting Area	3000mm/6000mm
Laser Power	500 – 3KW Fiber
Software Interface	Included w/ PC control tower
Material Capability	metals and some dark acrylics
Motor type	Servo motors on ball screw drive
Laser / PC Connectivity	USB connection
Power Supply	380V three phases
Warranty	2 Years (includes parts & laser power)
Class	Class 4 laser
Diameter of the pipe and tube	Φ20-Φ200mm
Length of the pipe and tube	6000mm
Route of the X axis	300mm
Route of the Y axis	6500mm
The rotary angle of the W axis	n*360° NO LIMITS
Reposition precision of the X/Y axis	±0.02mm
Max revolving speed of the W axis	80RPM
Max moving speed of the X axis	50m/min
Max accelerated speed of the X axis	1.2G
Max accelerated speed of the Y axis	0.6G
The chuck form	Double pneumatic chuck
Max loading	400kg
Size	1000018002300mm
Weight of the whole machine	5000kg
Motor configuration	X:850W/Y:3000W/W:3000W

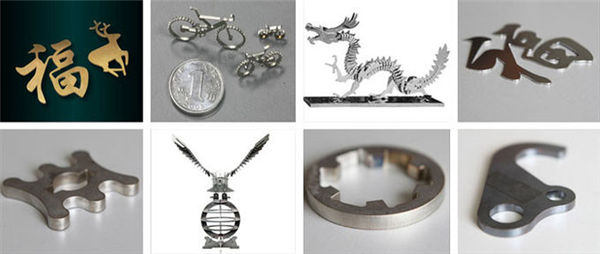

Application

1.Clean cut edges without burr for more efficient material utilization
and reduced secondary operations.
2. Cutting of various material thicknesses and combinations in one operation
3. No material deformation due to contactless material processing
4. Highly controllable, repeatable and accurate processing.Etc.
Since sheet and pipe integrated design, Industry adaptability of RL3015 has been greatly enhanced, including petroleum and pipe material, fitness equipment and other pipe material mainly mechanical processing, automotive Manufacturing, Machine cabinet and other board materials mainly mechanical processing etc.
