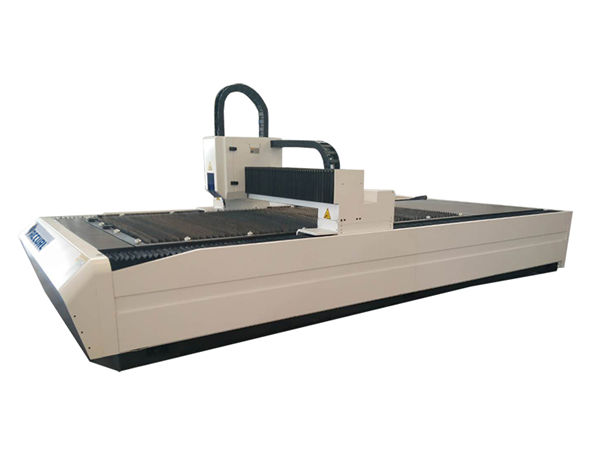

welded frame laser beam cutting machine high output power with dust removal system

welded frame laser beam cutting machine high output power with dust removal system

Product Details

Certification: CE / FDA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD Negotiable
Packaging Details: Wooden box with iron binding belt
Delivery Time: 15 - 30 Work Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 Units per year

Detailed Product Description

Cutting Area:1500*3000mmCooling Mode:Water Cooling
Laser Power:1000WWorktable Max Load:1000kgs
Positioning Accuracy:±0.05 MmTransport Package:Seaworthy Plywood Case
Technical Class:Continuous Wave LaserApplication:Agriculture Machinery, Automotive Industry, Advertising Industry, Metal Processing

Product Description

1.The strong frame is completely welded, high temperature annealing and stress relief treatment to ensure no deforming.
2. Imported high precision ball screw transmission / rack & pinion, high precision linear guide rail.
3. Imported servo motor and drive, imported high-rigidity precision gearbox.
Equipped with auto-lubrication device, with dust removal and smoke extract system in cutting area.
4.Modular structure of laser generator, high performance and free from maintenance
Professional laser cutting software, easy, convenient and smart to operate, easily design all kinds of graphics and texts for cutting.

Advantages over Other Cutting Machines

1. The super high photo-electric conversion efficiency can be up to about 30%. So the machine runs with the lowest power consumption compared to other laser cutting machines under the same output power. So the cutting cost is the lowest.
2. With laser beam of good quality from double-clad fiber(DCF), the focus spot is superfine, and the cutting seam is very even and fine. Then the efficiency can be higher, and the quality is better.
3. The surface-area-to-volume ratio (SVR) of the gain medium is big.
4. The light path is totally composed of fiber laser and fiber laser units, which are combined together based on cable splicing technology. And the whole light path is enclosed in fiber laser waveguide.
5. No laser working gas and can start cutting just by blowing air. And fiber optic transmission requires no need of reflector mirrors. In a word, the machine saves maintenance costs greatly.
6. The efficiency is very stable and reliable by adopting the diode pump laser module. No need to adjust the light path. So it’s easy to operate and maintain the machine.
7. Key units have the working life of 100 thousand hours.
8. High output power from 200 to 4000w can be customized.
9. The machine costs little water and energy. And the machine requires no gas. So the running cost is lower.

What Materials Can our Machine Cut ?

MaterialCutting thickness
Cutting gasCutting pressureNozzleCollimator / Focus
Carbon steel0.530-40Air61.5 single layer75/125
0.820-25Air81.5 single layer75/125
118-22Air102.0 single layer75/125
25-6.5Oxygen3.51.2 double layer75/125
33-3.5Oxygen0.5-11.2 double layer75/125
42-2.3Oxygen0.51.2 double layer75/125
51.5-1.8Oxygen0.51.2 double layer75/125
61.2-1.4Oxygen0.51.5 double layer75/125
80.9-1.2Oxygen0.52.0 double layer75/125
100.7-0.8Oxygen0.52.5 double layer75/125
120.5-0.65Oxygen0.52.5 double layer75/125
Stainless steel0.530-40Nitrogen71.5 single layer75/125
0.822-25Nitrogen101.5 single layer75/125
120-23Nitrogen121.5 single layer75/125
26-7Nitrogen152.0 single layer75/125
32.5-2.8Nitrogen182.0 single layer75/125
40.8-1.2Nitrogen182.0 single layer75/125
50.6-0.8Nitrogen182.0 single layer75/125
Aluminum0.520-25Air / Nitrogen81.5 single layer75/125
0.815-18Air / Nitrogen91.5 single layer75/125
110-12Air / Nitrogen121.5 single layer75/125
23-3.5Air / Nitrogen182.0 single layer75/125
31-1.5Air / Nitrogen182.0 single layer75/125
Brass0.522-30Nitrogen121.5 single layer75/125
0.813-17Nitrogen121.5 single layer75/125
110-12Nitrogen151.5 single layer75/125
22-3Nitrogen182.0 single layer75/125
31-1.3Nitrogen182.0 single layer75/125
Copper0.515-18Oxygen121.5 single layer75/125
0.88-12Oxygen121.5 single layer75/125
15-7Oxygen121.5 single layer75/125
20.8-1.2Oxygen152.0 single layer75/125

Applied materials of 1000W Fiber Laser Cutting Machine
Fiber cutter is mainly used for carbon steel cutting, mild steel, stainless steel, silicon steel,aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials. It is an cnc laser cutters can be used to do high precision cutting. It also can be called fiber cutter machine,fiber optic laser cutter,laser cutter for metal,fiber cutter,carbon steel cutting,cnc laser cutters.

Technical Parameter

Working Area3000*1500mm
Controller+Heigh followerCypcut
Laser SourceFiber Laser Source 1000W
Wave Length1070nm±10nm
Laser HeadOptional
Gear and RackGermany
Guide RailTaiwanese HIWIN
Positioning Precision≤±0.04mm
Cutting Thickness1-12mm
Max cutting speed40000mm/min(according to materials)
Working voltageAC220V/110V±10% 50HZ/60HZ
Min line Width≤0.12mm
TransmissionYaskawa servo 850W+FASTON reducer
Z axisYaskawa 400W+brake
CoolingWater Cooling
Structure10mm Thickness Welded steel tube,Aluminium Alloy Gantry
Power Consumption≤7.5KW

Applied Industry of 1000W Fiber Laser Cutting Machine
This laser cutter for metal is applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
