enclosure design metal ondustrial laser machine , laser cutting machine for aluminium

enclosure design metal ondustrial laser machine , laser cutting machine for aluminium

Product Details


Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 7-15 days
Supply Ability: 1 units/ month

Detailed Product Description

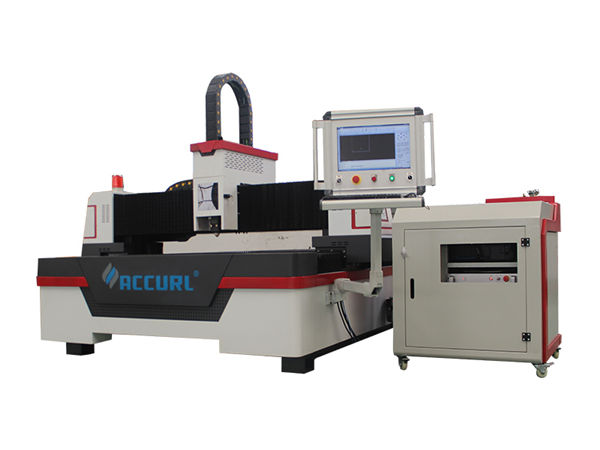

Product Name:Fully Enclosed Exchange Table Fiber Laser Cutting MachineLaser Power:1000w
Laser Wavelength:1080nmWorking Area:3000*1500mm

Product Desciption


It has industrial-scale machine body, the overall sheet metal design and the whole welding structure.It is machine processed after annealing and Then the vibration aging is done by which way it can completely eliminate the stress of welding and processing .Good rigidity, high precision, and the machine will be of no deformation with long time use.
X Y Z axis adopts imported high precision rack and liner guide rails, to make sure smooth transmission and high precision. Equipped with imported original servo motor to ensure the high precision, high speed, high torque, large inertia, stable and durable performance. Also it guarantees the high speed and acceleration of the whole machine.
The special fiber laser cutting machine control system, basing on Windows operation system and integrated with a lot of special laser cutting control function module, is with powerful function, good man-machine interface and simple operation.
Using special imported fiber laser cutting head to ensure the high precision sensing sensitive reaction and the stable reliable performance.
Automatic switching table. When one table is working and the other table can load and unload material work pieces, saving time and effort.

Fiber Laser Cutting Machine Advantages


1) Fiber laser cutting is the fastest process for thin sheet metal.
2) A “clean cut” surface quality is obtained.
3) Reflective materials like aluminium,copper and brass can be cut with ease.
4) Parts process cost is very low.
5 ) Little to no maintenance costs.
6) Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and
protection glasses over long periods. There are no other consumable costs.
7) Resonator life is over 100,000 working hours.
8) Double ball screw close-loop system and imported open-type CNC system, ensure high accuracy and high working efficiency during high speed cutting.
9) Standard collocation of 2KW fiber laser and optional 500W-4000W fiber laser
Standard collocation of 500W fiber laser and optional 800W,1000W,1500W fiber.
Low operating and maintenance costs. Achieve long-term return on investment and revenue
maximization.
10) Enclosure design conforms to CE standard for reliable and safe processing.
Pallet changer is convenient for material uploading and unloading, improving efficiency.
Open structure is easy and convenient for material uploading and unloading.
Drawer collecting device makes receiving materials more convenient.
11) Aiming at high speed cutting, strengthened welded machine body after 2 times of aging process, ensuring long-term accuracy and stability of performance.

Specifications


Laser wavelength1080nm
Cutting thickness0.2-16mm
Laser output power1000W
Maximum processing range3000 *1500mm
Machine drive modeimported rack gear and pinon drive
Y X. axis positioning accuracy±0.01mm
X.Y axis repeat positioning accuracy±0.01mm
Power supply mode380V / 50Hz
Maximum cutting speed45m/min
Minimum cutting line width0.02mm
Cooling mode3P Water cooling

Applications Industrial


Sheet metal processing, die - cutting board processing, electronics, electrical, aerospace, machinery, elevators, automobiles, ships, tools processing, subway accessories, oil machinery, food machinery, craft gift, decoration, advertising, metal processing and other processing industries.
