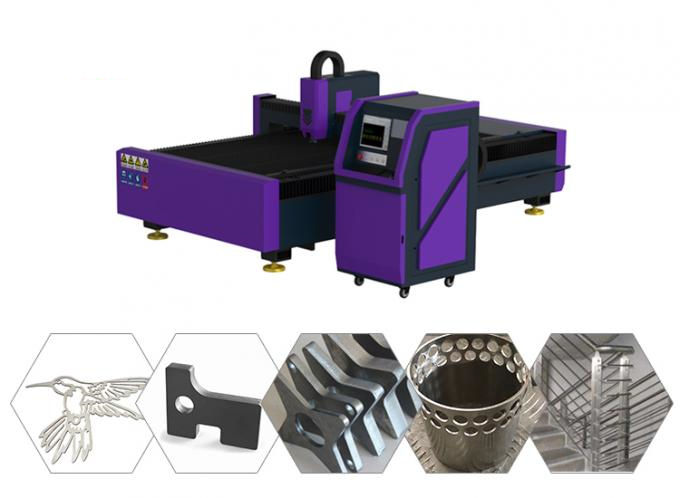

cnc metal cutting laser machine / fiber optic laser cutter

Product Details

Certification: CE / ISO / FDA / SGS / TUV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 15 workingdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 units

Detailed Product Description

Product Name:	Fiber Laser Cutting Machine	Laser Type:	Fiber Laser
Laser Power:	500-1000w	Working Area:	1500*3000mm
Laser Wavelength:	1070-1090nm	Power Supply:	380V/50Hz
Warranty:	1 Year	Cutting Head:	Raytools

^{Main configuration and technical advantage}

^{1, Fiber laser cutting is the fastest process for thin sheet metal.
2, A "clean cut" surface quality is obtained.
3, Reflective materials like aluminium,copper and brass can be cut with ease.
4, Parts process cost is very low.
5, Little to no maintenance costs.
6, Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
7. Resonator life is over 100,000 working hours}

^{Main Features}

^{1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Fast cutting speed save working time .
3. Energy saving and environmental protection;
4. Excellent quality of light beam:small focus facula, fine cutting line, high working efficiency,best processing quality.
5.Very low maintenance costs: optical fiber transmission, without reflection lens; can save a lot of maintenance costs;
6. Products easy operation : no need to adjust the optical path;
7. Flexible light guide effect: small size, compact structure and easy to meet flexible manufacturing requirements.}

^{Technical Parameters}

^{Product name}	^{Fiber Laser Cutting Machine}
^{Laser Type}	^{Fiber Laser}
^{Working area(mm)}	^{13002500MM/15003000MM}
^{Cutting Head}	^{Raytools Auto-Focus (Swiss)}
^{Laser power(W)}	^{500W/800W/1000W/1500W}
^{Driving and Transmission Way}	^{Servo Motor ,Gear Rack, Linear Guide Rail}
^{Max running speed}	^600m/min
^{Positioning Accuracy}	^≤±0.05mm
^{Re-positioning Accuracy}	^≤±0.03mm
^{Working Power Supply}	^{AC220V±10% 50HZ/380V 50Hz}
^{Working Table}	^{Rack working platform}
^{Control System}	^{Cypcut control system}
^{Location System}	^{Red dot indicator}
^{Water Cooling System}	^{CW6300 Constant temperature water chiller}
^{Max Acceleration}	^1G
^Formats	^{BMP,DXF,PLT,DST,CDR,GPEG}
^{Cutting Depth}	^{According the power}
^{Whole machine weight}	^2800KG
^Transmission	^{Precise pinion and rack,dual-drive transmitting}

Product Application

1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

Applications

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
