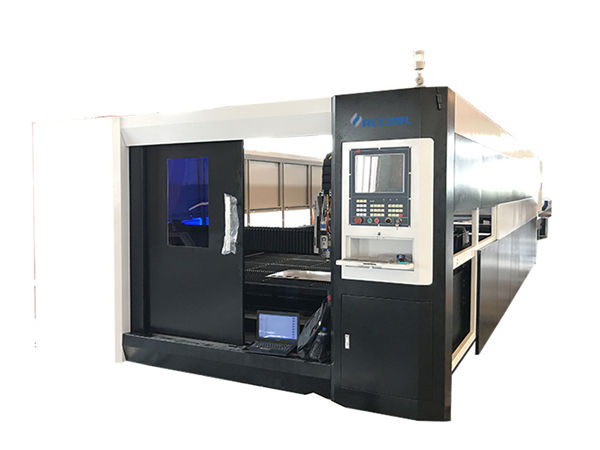

3000w fiber cnc laser metal cutting machine gantry double driving structure

3000w fiber cnc laser metal cutting machine gantry double driving structure

Product Details


Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*40GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description


Application::All Metal MaterialCutting Thickness:SS Upto 12mm, MS Upto 22cm
Laser Type::FiberPulse Frequency:1-2000HZ
Positioning System:The Red LightControl Software::Cypcut
Graphic Format Supported::AI, BMP, DST, DWG, DXF, DXP, LAS, PLTPlace Of Origin::China
Model Number::TY-DD3015After-sales Service Provided::Engineers Available To Service Machinery Overseas
Repeating Accuracy::+-0.03mmOperating Temperature::0°C-45°C
Working Humidity::5%-95%Laser Source:Chinese Or Imported
Voltage::AC380V±10% 50HZ(60HZ)Cutting Area:3000x1500mm

Advantage of fiber laser machine


1. Excellent quality of light beam
2. Highly cutting speed: the 2 times by co2 laser cutting machine under the same power.
3. Very high stability and efficiency of photoelectric conversion
4. Very low using cost and maintenance cost
5. Convenient product operation and maintenance
6. Very strong soft optical effects: compact volume and structure
7. Gantry double driving structure, high damping machine tool bed, good rigid,
8.This model adopts imported AC servo system driver and imported transmission system, the moving structure of machine tool adopts imported gear and rack transmission, linear guide track for guiding, ensuring the high speed,high precision and high reliability of equipment.
9. Rack and guide adopt fullly enclosed protective device, which prevents oil free friction movement and dust pollution, enhances using life of transmission parts and ensures the precision of machine tool movement.
10. Professional laser cutting machine, cnc control system, computer operation, can ensure the cutting quality, and more convenient for cutting work.
11. Automatic swiching table configuration, which shortens the standby time, and effectively enhances the working efficiency more than 30%.
12. Fully enclosed protective cover,using safety.(Enclosed Model)

Main Features of Fiber laser cutting machine


Machine body:
1. Taiyi's Machine body with 8mm steel structure, 600℃ heat treatment, Precise welding, to make sure 20 years usage without deformation.
2. Gantry with magnesium alloy casting, Strong stability without deformation, Fast movement.
3. High efficiency zoning smoking system at both sides of machine body, Strong segmented dust and smoking collection, it will reduce harm to worker.
4. Imported precision flange reducer and servo motor, Fast running speed.
5. 70 blades and 6 slide bars on the machine bed, with close blades to reduce machine warning, slide bars working with cylinders to upload and download sheets easily.
6. Flexible loading box can be opended front and both sides which is convinient for machine working condition.

Specification


Laser source mediumFiber
Cutting range (L * W)3000 mm × 15000 mm
Z axle stroke250 mm
Max. positioning speed120 m/min
X,Y axle Max. accelerate speed1.0G
Cooling formWater cooling
Laser wavelength1070nm


Output power of laser source



500W/1000W / 1500W / 2000W

2500W / 3000W / 4000W

(Optional)

Min. cutting gap≤ 0.1 mm
Positioning accuracy of X, Y and Z axles± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles± 0.01 mm
Thickness of cutting material (according to material)0.2 - 25 mm
Driver modelImported servo motor
Power requirement380V, 50/60 Hz
Working temperature0-45℃
Continuous working time24 Hours
Machine weightAbout 12000 Kgs
Total protection level of power supplyIP54

Cutting Thickness Reference Table


Laser PowerMax cutting thickness
Carbon steel(mm)Stainless steel(mm)Aluminum (mm)Brass

(mm)

700W8311
1000W12422.5
1500W14543
2000W16654
3000W221068
Above parameter for reference only

Applied Materials


kitchen ware, chassis and cabinet,metal pipe,lamp&lanterns,metal ware,hardware,precision machinery,auto parts,elevator,nameplate,advertisement,electronics,toys and other industries.

Detailed Images


Name: Machine body and accessoriea.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation.
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driverThe imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
Name:Precision Linear GuidesAdvanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting headThe contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
Name:Laser sourcefast speed,high precision cutting line, and smooth cutting edge

Training


After-sales service, from training to machine installation (3 ways):
1.Training video and user's manual in English to be offered for installation, operation, maintenance and trouble-shooting, and technical guide to be offered by e-mail, fax, telephone/whatsapp /skype//and so on, when you meet some problems of installation, using or adjusting.
2.Your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 3-5days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation.
3.Door-to-door instruction training service. visa, traveling expenses and accommodation will be at customer's cost. It's better to arrange a translator for both of our engineers during the training period. Training Time: 3-5days.

Warranty


a).1Year for the whole machine(Man-made Damage is negotiated.).
b).Laser source 2 Years warranty
c).Lifelong maintenance and spare parts supply
d).Free training for operation staffs. (engineer can go abroad is negotiated.)
