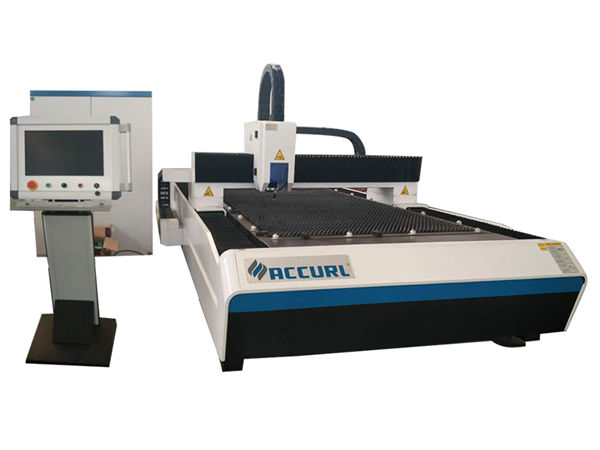

2000w/3000w metal fiber laser cutting machine ac380v cypcut control system

2000w/3000w metal fiber laser cutting machine ac380v cypcut control system

Product Details


Certification: CE, FDA, IOS9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD
Packaging Details: Standard Wood Packing
Delivery Time: 30-45 Days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/P
Supply Ability: 100 Sets Per Month

Detailed Product Description


Model:RL-3015-2000Laser Power:2000W
Laser Source:Max/Raycus/IpgMaximum Processing Size:3000*1500mm
Maximum Operating Speed:800mm/sControl System:Cypcut
Material Cutting Thickness:0.2-30mmElectric Power Supply:AC380V 50Hz/5KW
Positioning Accuracy:±0.05mm/500mmHS Code:8456110090
Transport Package:Wooden CartonWeight:1100KG
Repeat Position Accuracy:±0.05mm/500mmLaser Type:Fiber Laser

Product Description


Fiber Laser Cutting Machine is used for cutting steel, aluminum, titanium, copper and other metal materials with higher laser cutting quality, speed, precision and efficiency. Now the fiber laser cutter for sale with affordable price and free fiber laser cutting system service from China professional CNC laser manufacturer.

Features of 2000W Fiber Metal Laser Cutting Machine


Stability and reliability of light path system and control system.Stable running: adopt top world import Fiber lasers, stable performance, key parts can reach 100,000 hours.
Very low cost, every hour only consumed 0.5W to 1.5W electricity, cutting all kinds of sheet metal by air.
Imported original fiber lasers,high and stable function,lifespan is over 100000 hours.
Higher cutting quality and efficiency ,cutting speed is up to 80m/min with appearance and beautiful cutting edge.
Imported servo motor and gearing system to guarantee precise cutting.
German high performance reducer,gear and rack;Japanese guide and ball screw.
Dedicated software enables graphic or text to instantly designed or processed. Flexible and easy operation.

Technical Parameters


Laser Power2000W/3000/4000W/6000W
Laser SourceMAX/Raycus/IPG
Laser TypeFiber Laser
Laser wavelength1064nm
Laser Beam Quality<0.373mrad
Working TableSawtooth
Fiber Laser cutting headRaytool
Focus lensRaytool
Motor&DriversYaskawa servo motor made in Japan
ReducerFrance motovario
Guide RailsHigh accuracy from Germany
Transmit systemDual Rack & Pinion type
Rack systemAtlanta rack made in Germany
Control systemProfessional laser control system-Cycut
Auxiliary Gas for cuttingOxygen.Nitrogen
Compatible softwareAutocad.Coreldraw.etc
Machine weight8000KG
Warranty timeWhole machine for 3 years
RemarkAutomatic exchange worktable , cover(option)

Applications


Applicable materials: thin sheet metal, a variety of high quality 0.5 -3mm carbon steel sheet cutting, stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal materials.

Applicable industries: Kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and other metal processing.
