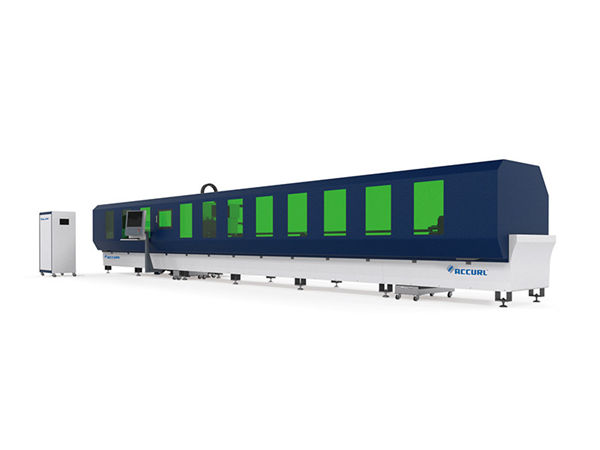

metal high power laser cutting machine , fiber laser equipment 0.003mm accuracy

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*20GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, L/C
Supply Ability: 50sets per month

Detailed Product Description

Product Name::	TY-3015DG Metal Fiber Laser Cutting Machine , 0.003mm Accuracy	Cutting Thickness:	SS Upto 10mm, MS Upto 22cm
CNC Or Not::	Yes	Control Software::	Cypcut
Working Humidity::	5%-95%	Voltage::	AC380V±10% 50HZ(60HZ)
Cutting Area:	3000*1500mm Standard, Bigger Can Be Customized

Main features

1. Our Machine body with 8mm steel structure, 600℃ heat treatment, Precise welding, to make sure 20 years usage without deformation.
2. Gantry with magnesium alloy casting, Strong stability without deformation, Fast movement.
3. High efficiency zoning smoking system at both sides of machine body, Strong segmented dust and smoking collection, it will reduce harm to worker.
4. Imported precision flange reducer and servo motor, Fast running speed.
5. 70 blades and 6 slide bars on the machine bed, with close blades to reduce machine warning, slide bars working with cylinders to upload and download sheets easily.
6. Flexible loading box can be opended front and both sides which is convinient for machine working condition.

Specification

Laser Source	IPG/Raycus/Nlight
Machine Body	gantry structure
Working Travel	High Precision Ball screw numerical control table with feeding device
Max running speed	80m/min-90G/min
X/Y location precision	0.03mm/m
Power Supply	380V 50Hz/60Hz
X/Y repeated location precision	±0.03mm
Running Temperature	0°C-45°C
Max Acceleration	1.0G
Machine gross power	<16KVA
Applied Materials	Thin mild steel, stainless steel and other kinds of metallic sheets
Cutting Area	3000mm1500mm/4000mm2000mm/6000mm*2000mm
Total Weight	4600KGS

Training

After signing the contract , your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 1-3 days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting;
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation

Warranty

a). 1Year for the whole machine of metal pipe laser cutting machine (Man-made Damage is negotiated.).
b). Laser source 2 Years warranty
c). Lifelong maintenance and spare parts supply
d). Free training for operation staffs. (engineer can go abroad is negotiated.)
