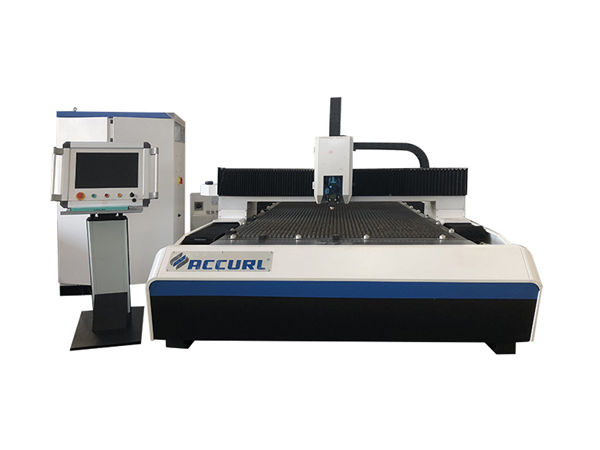

round pipe metal fiber laser cutting machine with water cooling system

round pipe metal fiber laser cutting machine with water cooling system

Product Details


Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NEGOTIATION
Packaging Details: WOODEN CASE
Delivery Time: 15 DAYS
Supply Ability: 2000 UNITS

Detailed Product Description


Products Name:Fiber Laser Cutting MachineLaser Type:Fiber Laser
Laser Application:Laser CuttingApplication Material:Metal
Working Area:3000*1500mmCNC Or Not:Yes
Cooling Mode:Water Cooling

Features of laser cutting machines


This type of Fiber Laser Cutting Machine for Round Metal Pipe and Sheet Cutting is launched by Rise Laser. Adopted the Taiwan famous screw guide, Panasonic servo and drive, the fiber laser cutting machine can meet the needs for cutting metal pipe and sheet. And the pipe diameter can up to 200mm. It can be customized according to different demands. The unique design with rotary auxiliaries can avoid the technical problems for cutting pipe and sheet at the same time.

Advantage about Fiber Laser Cutting Machine


1. Controller with a touch screen operating system, easy to operate.
2. 3HP high-power water chillers to keep the laser head always in a comfortable working temperature.
3. 500-1000W Raycus or IPG fiber laser source, and the photoelectric conversion rate is high.
4. Automatic focus laser cutting head (metal sensor) selection of well-known brands USA , with high sensitivity, good stability.
5. Japan's Panasonic servo motor and drive to improve the cutting speed and stability.
6. Combination of ball movement and feed system.

Technical parameter


ItemParameter
Laser typeFiber laser
Wave length1070-1080nm
Electro-optical conversion efficiency25-30%
XYZ Route3025mm/1525mm/100mm
Material Cutting thickness0.2-8mm
Cutting seam width0.1-0.2mm
Repeat position accuracy±0.05mm/500mm
Positioning accuracy±0.05mm/500mm
Max.Moving Speed60000mm/min
Max.Accerlation speed0.8g
Max.loading weight500kg
Machine weight2300kg
Required Power220V 50Hz/60Hz
Machine size(L*W*H)4500mm*2450mm*1700mm

Detail Parts


Applied Fields of laser cutting machine


Fiber Laser Cutting Machine for Round Metal Pipe and Sheet Cutting is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.
It can zarry on non-contact cutting on metal sheet, pipe, especially for stainless steel, sttel plate,diomond saw blades and othermetal materials, it has excellent processiong for the various high-brittle hard alloys. In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.

Laser Cutting Samples


FAQ


Q1.How do you get the best price?
As you may know, the different type machine apply to different materials, and the different model apply to different materials.

Q2.In case of the failure, how to do?
Call us---- our engineers are online for 24 hours and ready to serve you.
Replacement of damaged parts for free--For more information, please contact us.
The CD and operation manual-----it shows the most common failure in working processing and how to solve the problems.
