Product Details
Detailed Product Description

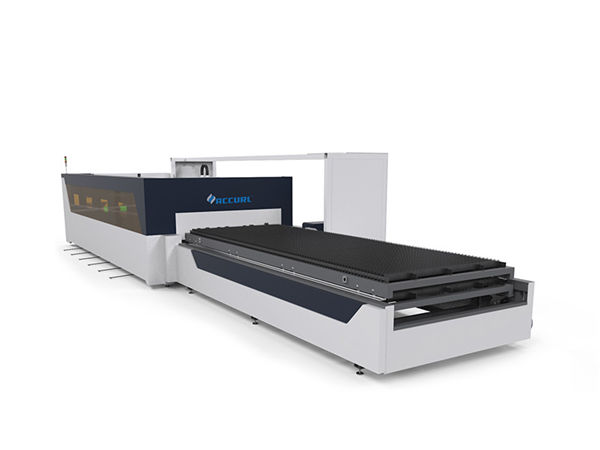

| Product Name: | 4mm Carbon Steel Tube Pipe Sheet CNC Fiber Laser Cutting Machine With Raytools | Laser Type: | Fiber Laser |
|---|---|---|---|
| Laser Power: | 500w - 4000W | Chiller: | S&A |
| Cutting Head: | Raytools | Cutting Area: | 3000*1500mm |
Fiber laser cutting machine adds tube cutting function, meeting requirements for both plate metal and tube cutting. One machine for multiple uses.
Application of manual clamping chuck with extra-long mechanic claw to reduce material waste. Processing diameter falls between 20mm--200mm, which could meet most of the tube cutting requirements. Synchronized electric servo motor-driven chucks at both front and rear ends.
Technical Parameters
| Laser type | Maxphotonics fiber laser |
| Laser power | 500w 750w 1000w 2000w 3000w fiber optional |
| Cutting area | 1500mm*3000mm |
| Whole machine size | 1360*780*1100mm |
| Engraving speed | 0 - 60,000mm/min |
| Resetting positioning accuracy | ±0.05mm |
| Working voltage | AC 110 - 220V±10%, 50 - 60Hz |
| Gross power | <1,000W |
| Operating temperature | 0 - 45°C |
| Operating humidity | 5- 95% |
| Minimum shaping character | English 1 x 1mm |
| Graphic format supported | BMP,PLT, DST, DXF, and AI |
| Driving system | 500w 750w 1000w 2000w 3000w fiber optional |
| Cooling mode | water-cooling and protection system |
| Auxiliary equipments | Exhaust-fans, air-exhaust pipe |
| Controlling software | Cypcut control system |
| Compatible software | CorelDraw AutoCAD Photoshop |
| Net Weight | 6000kg(depends on models) |
Application

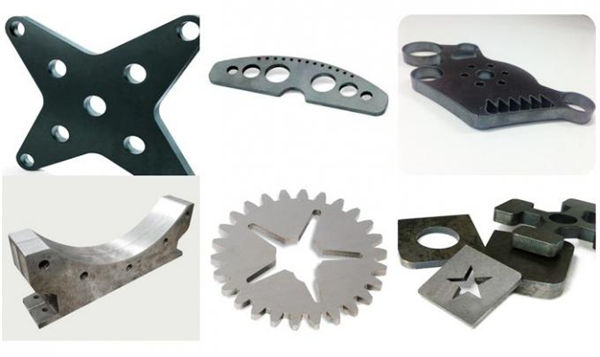

Widely used in the processing of advertising board, metal plate structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc..
Our service
1. Installation Services
Installation Services are available with all our new machines. We can send our technician to your factory to help you install your purchased machines from our factory. Of course, your factory need to supply the round trip tickets food, hotel and salary to our technician.
2. Clients Training Services
We advise each customer can send your own technician come to our factory to learn how to operate our machines. We will let our technician teach and train your technician hand by hand till he can operate our machine by himself.
3. After Sales Service
Our machine guarantee time is one year.
We will send many easy broken spare parts in the tool box together with machines.
If any parts broken, please take a pictures or a videos to us.
We will help you to change it.
