Product Details
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NEGOTIATION
Packaging Details: Wooden Case
Delivery Time: 14 DAYS
Payment Terms: Western Union, T/T
Supply Ability: 2000 UNITS
Detailed Product Description
| Products Name: | Fiber Laser Cutting Machine | Laser Type: | Fiber Laser |
|---|---|---|---|
| Laser Application: | Laser Cutting | Application Material: | Metal |
| Working Area: | 3000*1500mm | CNC Or Not: | Yes |
| Cooling Mode: | Water Cooling |

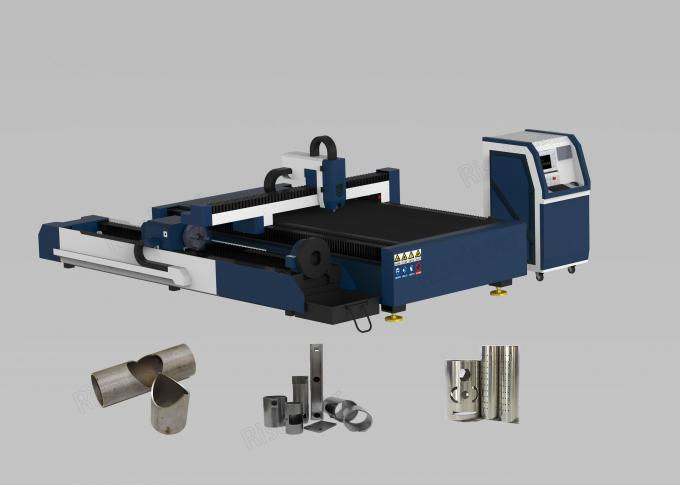

Description of laser cutting machines
The whole fiber tube and plate laser cutting machine consist of machine tool, motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts, so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.
Advantage
1. Controller with a touch screen operating system, easy to operate.
2. 3HP high-power water chillers to keep the laser head always in a comfortable working temperature.
3. 500-1500W Maxphotonics fiber laser source, and the photoelectric conversion rate is high.
4. Automatic focus laser cutting head (metal sensor) selection of well-known brands USA , with high sensitivity, good stability.
5. Japan's servo motor and drive to improve the cutting speed and stability.
6. Combination of ball movement and feed system.
Technical parameter
| Item | Parameter |
| Laser type | Fiber laser |
| Wave length | 1070-1080nm |
| Electro-optical conversion efficiency | 25-30% |
| XYZ Route | 3025mm/1525mm/100mm |
| Cutting seam width | 0.1-0.2mm |
| Repeat position accuracy | ±0.05mm/500mm |
| Positioning accuracy | ±0.05mm/500mm |
| Max.Moving Speed | 60000mm/min |
| Max.Accerlation speed | 0.8g |
| Max.loading weight | 500kg |
| Machine weight | 2300kg |
| Required Power | 220V 50Hz/60Hz |
| Machine size(L*W*H) | 4500mm*2450mm*1700mm |
Applied Fields of laser cutting machine
Metal tube cutting machine is professional in cutting varies metal tube and sheet.
Cutting material: stainless steel, carbon steel, mild steel, iron, galvanized steel, titanium steel, silicon steel, brass, aluminum, titanium alloy, brass, copper, silver, gold, etc.
Sample Display
Related Products

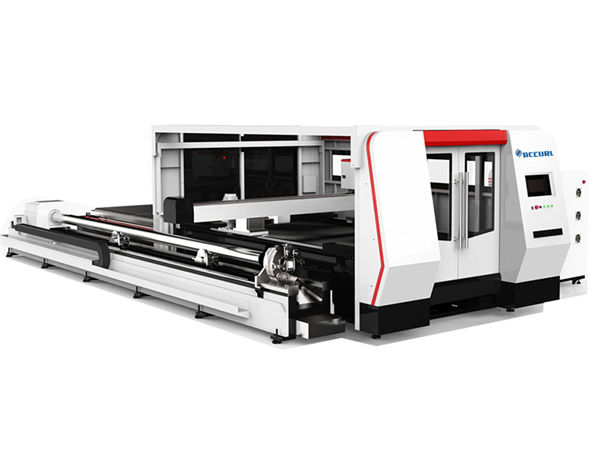

dustproof metal tube laser cutting machine , safe laser cutting machine for tubes- fiber laser tube cutting machine for mild steel / stainless steel
