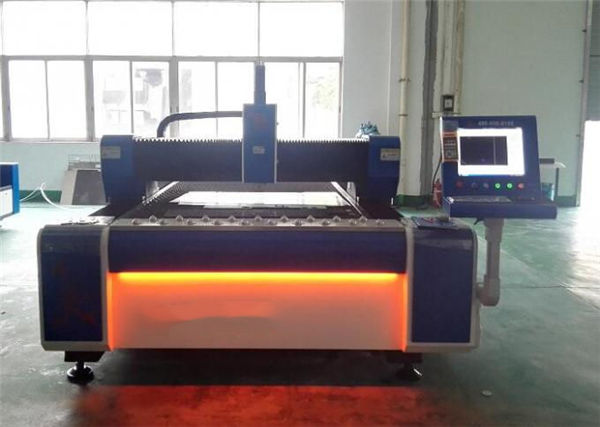

continuous working stainless steel metal laser cutting machine

continuous working stainless steel metal laser cutting machine

Product Details


Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*40GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description


Application::All Metal MaterialCutting Thickness:SS Upto 12mm, MS Upto 22cm
Laser Type::Imported Original Fiber LaserCondition:New
Min.line Width:0.1mmControl Software::Cypcut
Graphic Format Supported::AI, BMP, DST, DWG, DXF, DXP, LAS, PLTBrand Name::TAIYI LASER
Repeating Accuracy::+-0.03mmOperating Temperature::0°C-45°C
Cooling Mode:Water CoolingLaser Source:Chinese Or Imported
Voltage::AC380V±10% 50HZ(60HZ)Cutting Area:3000x1500mm
Product Name:Continuous Working Stainless Steel Metal Laser Cutting Machine Stable Running

Continuous Working Stainless Steel Metal Laser Cutting Machine with Stable Running​

Advantage of Steel Metal Laser Cutting Machine


1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 60m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can
reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine,
fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate
is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser
cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.

Main Features


1) Adopting World Famous Germany Dlaser Fiber laser source and USA Laser Mech cutting head &
Dynamic Focus System,it can cut and punch different kind of metal material with high precision
and high speed.
2) Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path.
It greatly reduces the machines fault rate and prolongs the working life.
3) Large format cutting area meets the demands of various kinds of metal processing.

Specification


Laser source mediumFiber
Cutting range (L * W)3000 mm × 1500 mm
Z axle stroke250 mm
Max. positioning speed120 m/min
X,Y axle Max. accelerate speed1.0G
Cooling formWater cooling
Laser wavelength1070nm
Output power of laser source500-4000W
Min. cutting gap≤ 0.1 mm
Positioning accuracy of X, Y and Z axles± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles± 0.01 mm
Thickness of cutting material (according to material)0.2 - 25 mm
Driver modelImported servo motor
Power requirement380V, 50/60 Hz
Working temperature0-45℃
Continuous working time24 Hours
Machine weightAbout 12000 Kgs
Total protection level of power supplyIP54

Applicable Fields


Applicable for high-speed cutting on various metal plates or tubes such as S/S, carbon steel, galvanized sheet,electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals and other materials;

Aplication


Widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.

Detailed Images


Name: Machine body and accessoriea.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation.
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driverThe imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
Name:Precision Linear GuidesAdvanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting headThe contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
Name:Laser sourcefast speed,high precision cutting line, and smooth cutting edge

Cutting Samples


FAQ


Q1: what kind of machine I should choose?
It is just easy to choose from. You need to tell us what you want to do, then we will give you perfect solutions and suggestions.

Q2: I don’t know how to use it. What should I do?
We will send an English manual with the machine. If you still have some doubts, we can talk by telephone or Skype and e-mail.

Q3: If some problems happen to this machine during the warranty period, what should I do?
We also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4: Before sending me an inquiry on our fibre laser, it is better for you to provide me with the following information?
1)Your metal or non-metal material size. Because in our factory, we have different models according to the working area.
2)Your materials.
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness needs different laser tube power and laser power supplier.
