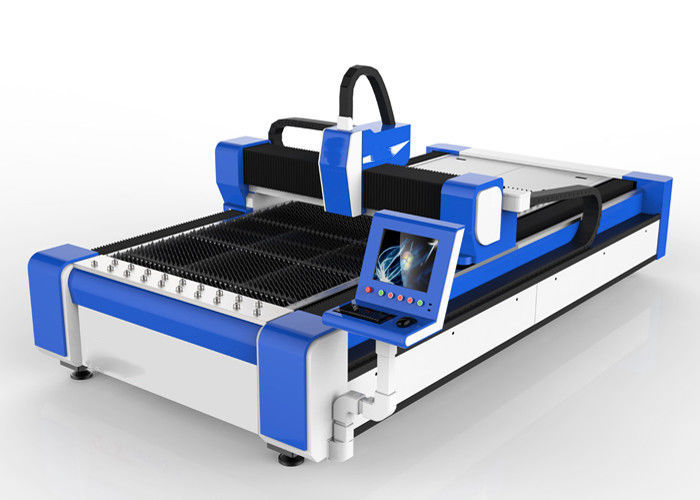

500w fiber laser cutting machine for stainless steel / ms high speed 100m / min

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 20000-30000USD
Packaging Details: 1*20GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description

Application::	All Metal Material	Cutting Thickness:	SS Upto 3mm, Steel Upto 5mm
Laser Type::	Fiber	CNC Or Not::	Yes
Cooling Mode::	Water Cooling	Control Software::	Cypcut
Graphic Format Supported::	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Place Of Origin::	China
Model Number::	TY-3015DD	After-sales Service Provided::	Engineers Available To Service Machinery Overseas
Repeating Accuracy::	+-0.03mm	Operating Temperature::	0°C-45°C
Working Humidity::	5%-95%	Laser Source:	Chinese Or Imported
Voltage::	AC380V±10% 50HZ(60HZ)	Cutting Area:	3000x1500mm
Product:	500W Fiber Laser Cutting Machine

Specification

Laser Source	IPG/Raycus/nLIGHT
Machine Body	gantry structure Aluminum
Working Travel	High Precision Ball screw numerical control table with feeding device
Max running speed	100m/min
X/Y location precision	0.03mm/m
Power Supply	380V 50Hz/60Hz
X/Y repeated location precision	±0.03mm
Running Temperature	0°C-40°C
Max Acceleration	1.0G
Machine gross power	<10KVA

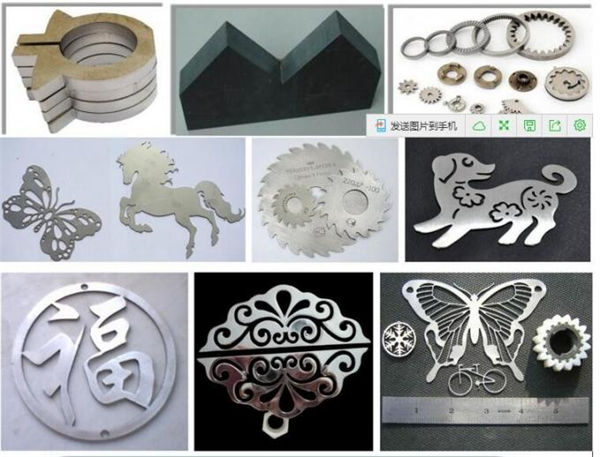

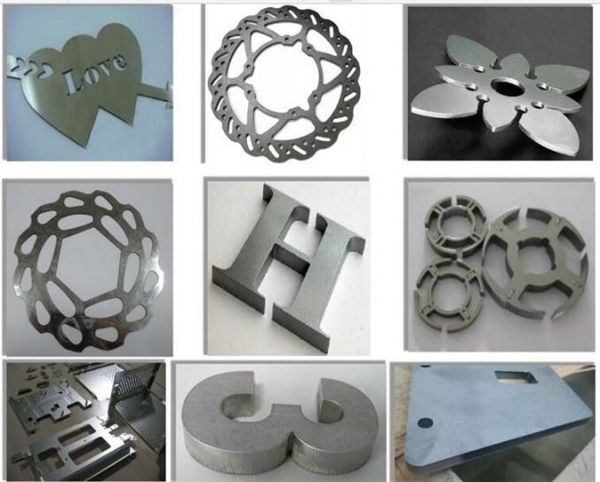

Applied Materials	Thin mild steel, stainless steel and other kinds of metallic sheets
Cutting Area	3000mm1500mm/4000mm2000mm/6000mm*2000mm
Total Weight	3800KGS

Detailed Images

	Name:Machine body and accessories a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation. b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets. c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driver The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
	Name:Precision Linear Guides Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting head The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
	Name:Laser source fast speed,high precision cutting line, and smooth cutting edge

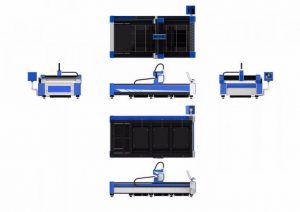

Name:Machine body and accessories

a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation.
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.

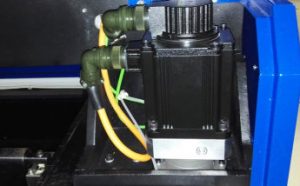

Name:AC servo motor & driver

The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.

Name:Precision Linear Guides

Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..

Name:Cutting head

The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.

Name:Laser source

fast speed,high precision cutting line, and smooth cutting edge

Training

After signing the contract , your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 1-3 days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting;
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation

Warranty

a).2 Year for the whole machine(Man-made Damage is negotiated.).
b).Laser source 2 Year warranty
c).Lifelong maintenance and spare parts supply
d).Free training for operation staffs. (engineer can go abroad is negotiated.)
