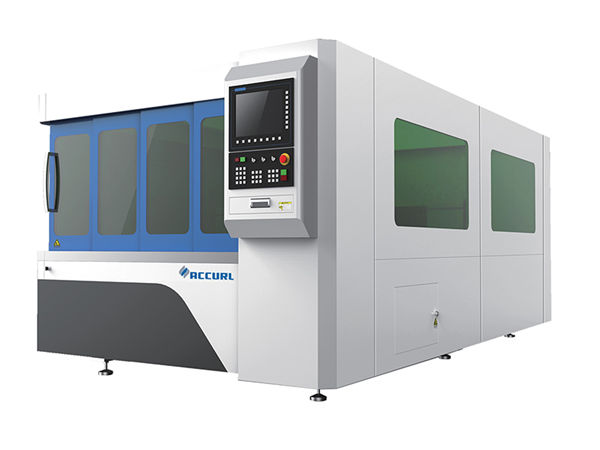

1070nm wavelength industrial laser cutting machine / fiber laser cutting machines

Product Details

Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1Set

Price: Negotiable

Packaging Details: 1*40GP container

Delivery Time: 30days

Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description

Application::	All Metal Material	Cutting Thickness:	SS Upto 12mm, MS Upto 22cm
Laser Type::	Imported Original Fiber Laser	Name:	Fiber Laser Cutting Machine
Min.line Width:	0.1mm	Graphic Format Supported::	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Max Acceleration:	1G	Repeating Accuracy::	+/-0.03mm
Operating Temperature::	0°C-45°C	Cooling Mode:	Water Cooling
Weight(kg):	8600	Voltage::	AC380V±10% 50HZ(60HZ)
Cutting Area:	3000x1500mm

Advantage of fiber laser machine

1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable pe
rformance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.

Main Features of Fiber laser cutting machine

1) Adopting World Famous Germany Dlaser Fiber laser source and USA Laser Mech cutting head &
Dynamic Focus System,it can cut and punch different kind of metal material with high precision
and high speed.
2) Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path.
It greatly reduces the machines fault rate and prolongs the working life.
3) Large format cutting area meets the demands of various kinds of metal processing.

Specification

Laser source medium	Fiber
Cutting range (L * W)	3000 mm × 15000 mm
Z axle stroke	250 mm
Max. positioning speed	120 m/min
X,Y axle Max. accelerate speed	1.0G
Cooling form	Water cooling
Laser wavelength	1070nm
Output power of laser source	500W/1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional)
Min. cutting gap	≤ 0.1 mm
Positioning accuracy of X, Y and Z axles	± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles	± 0.01 mm
Thickness of cutting material (according to material)	0.2 - 25 mm
Driver model	Imported servo motor
Power requirement	380V, 50/60 Hz
Working temperature	0-45℃
Continuous working time	24 Hours
Machine weight	About 8600 Kgs
Total protection level of power supply	IP54

Cutting Thickness Reference Table

Laser Power	Max cutting thickness
Laser Power	Carbon steel(mm)	Stainless steel(mm)	Aluminum (mm)	Brass (mm)
700W	8	3	1	1
1000W	12	4	2	2.5
1500W	14	5	4	3
2000W	16	6	5	4
3000W	22	10	6	8
Above parameter for reference only

Application Materials

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

Application Industries

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Detailed Images

	Name: Machine body and accessoriea.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation. b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets. c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driverThe imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
	Name:Precision Linear GuidesAdvanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting headThe contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
	Name:Laser sourcefast speed,high precision cutting line, and smooth cutting edge

FAQ

Q1: what kind of machine I should choose?
It is just easy to choose from. You need to tell us what you want to do, then we will give you perfect solutions and suggestions.

Q2: I don’t know how to use it. What should I do?
We will send an English manual with the machine. If you still have some doubts, we can talk by telephone or Skype and e-mail.

Q3: If some problems happen to this machine during the warranty period, what should I do?
We also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me with the following information?
1)Your metal or non-metal material size. Because in our factory, we have different models according to the working area.
2)Your materials.
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness needs different laser tube power and laser power supplier.
