Detailed Product Description
Application:: | All Metal Material | Cutting Thickness: | SS Upto 12mm, MS Upto 22cm |
---|---|---|---|
Laser Type:: | Imported Original Fiber Laser | Name: | Fiber Laser Cutting Machine |
Min.line Width: | 0.1mm | Graphic Format Supported:: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT |
Max Acceleration: | 1G | Repeating Accuracy:: | +/-0.03mm |
Operating Temperature:: | 0°C-45°C | Cooling Mode: | Water Cooling |
Weight(kg): | 8600 | Voltage:: | AC380V±10% 50HZ(60HZ) |

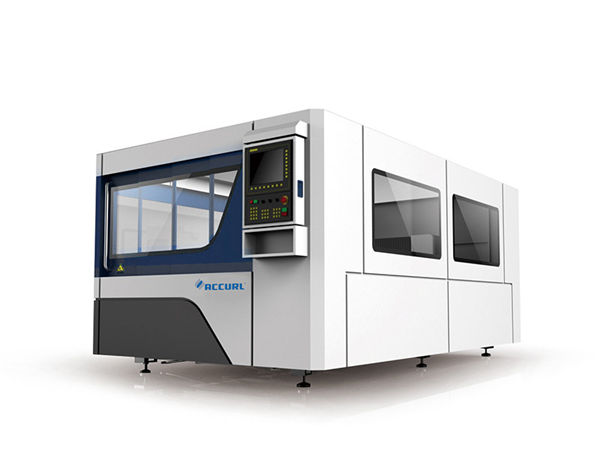

Cutting Area: | 3000x1500mm | Product: | Fiber Laser Metal Cutting Machines Cutting Thickness SS Upto 12mm , 3000x1500mm |
Advantage of Fiber Laser Metal Cutting Machine
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable pe
rformance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.
Main Features of Fiber laser cutting machine
1) Adopting World Famous Germany Dlaser Fiber laser source and USA Laser Mech cutting head &
Dynamic Focus System,it can cut and punch different kind of metal material with high precision
and high speed.
2) Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path.
It greatly reduces the machines fault rate and prolongs the working life.
3) Large format cutting area meets the demands of various kinds of metal processing.
Specification
Laser source medium | Fiber |
Cutting range (L * W) | 3000 mm × 15000 mm |
Z axle stroke | 250 mm |
Max. positioning speed | 120 m/min |
X,Y axle Max. accelerate speed | 1.0G |
Cooling form | Water cooling |
Laser wavelength | 1070nm |
Output power of laser source
| 500W/1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional) |
Min. cutting gap | ≤ 0.1 mm |
Positioning accuracy of X, Y and Z axles | ± 0.03 mm |
Repeated positioning accuracy of X, Y and Z axles | ± 0.01 mm |
Thickness of cutting material (according to material) | 0.2 - 25 mm |
Driver model | Imported servo motor |
Power requirement | 380V, 50/60 Hz |
Working temperature | 0-45℃ |
Continuous working time | 24 Hours |
Machine weight | About 8600 Kgs |
Total protection level of power supply | IP54 |
Cutting Thickness Reference Table
Laser Power | Max cutting thickness | |||
Carbon steel(mm) | Stainless steel(mm) | Aluminum (mm) | Brass (mm) | |
700W | 8 | 3 | 1 | 1 |
1000W | 12 | 4 | 2 | 2.5 |
1500W | 14 | 5 | 4 | 3 |
2000W | 16 | 6 | 5 | 4 |
3000W | 22 | 10 | 6 | 8 |
Above parameter for reference only |
Application Materials
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Detailed Images
| Name:Machine body and accessoriesa.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation. b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets. c.High quality guarantees its durability and easier maintenance. |
Name:AC servo motor & driverThe imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive. | |
Name:Precision Linear GuidesAdvanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy.. | |
Name:Cutting head The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased. | |
Name:Laser sourcefast speed,high precision cutting line, and smooth cutting edge |
Cutting Samples
Training
After-sales service, from training to machine installation (3 ways):
1.Training video and user's manual in English to be offered for installation, operation, maintenance and trouble-shooting, and technical guide to be offered by e-mail, fax, telephone/whatsapp /skype//and so on, when you meet some problems of installation, using or adjusting.
2.Your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 3-5days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation.
3.Door-to-door instruction training service. visa, traveling expenses and accommodation will be at customer's cost. It's better to arrange a translator for both of our engineers during the training period. Training Time: 3-5days.
Warranty
a).1Year for the whole machine(Man-made Damage is negotiated.).
b).Laser source 2 Years warranty
c).Lifelong maintenance and spare parts supply
d).Free training for operation staffs. (engineer can go abroad is negotiated.)
Packaging and shipping
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
