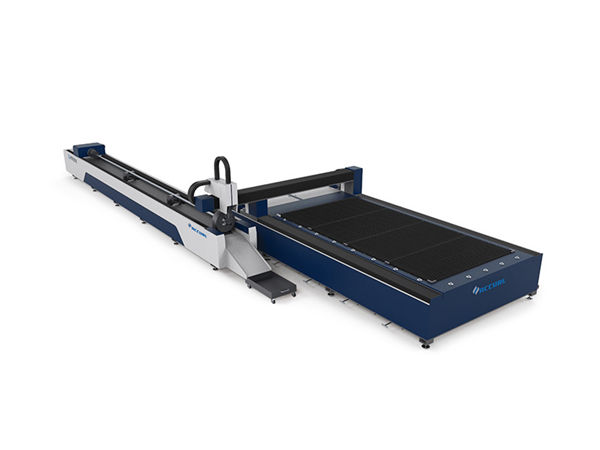

metal tubes 3d laser cutting machine / auto pipe cutting machine

metal tubes 3d laser cutting machine / auto pipe cutting machine

Product Details


Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*20GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, L/C
Supply Ability: 50sets per month

Detailed Product Description


Application::All Metal MaterialCutting Thickness:SS Upto 10mm, MS Upto 22cm
Laser Type::FiberCNC Or Not::Yes
Cooling Mode::Water CoolingControl Software::Cypcut
Graphic Format Supported::AI, BMP, DST, DWG, DXF, DXP, LAS, PLTPlace Of Origin::China
Model Number::TY-3015DGAfter-sales Service Provided::Engineers Available To Service Machinery Overseas
Repeating Accuracy::+-0.03mmOperating Temperature::0°C-45°C
Working Humidity::5%-95%Processing Range:20-130mmx3000mm
Voltage::AC380V±10% 50HZ(60HZ)Cutting Area:3000*1500mm Standard, Bigger Can Be Customized

Machine body


1. Our Machine body with 8mm steel structure, 600℃ heat treatment, Precise welding, to make sure 20 years usage without deformation.
2. Gantry with magnesium alloy casting, Strong stability without deformation, Fast movement.
3. High efficiency zoning smoking system at both sides of machine body, Strong segmented dust and smoking collection, it will reduce harm to worker.
4. Imported precision flange reducer and servo motor, Fast running speed.
5. 70 blades and 6 slide bars on the machine bed, with close blades to reduce machine warning, slide bars working with cylinders to upload and download sheets easily.
6. Flexible loading box can be opended front and both sides which is convinient for machine working condition.

Advantage of fiber laser cutting machine


1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 60m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can
reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine,
fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate
is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser
cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.

Specification


Laser source mediumFiber
Cutting range (L * W)3000 mm × 1500 mm
Z axle stroke250 mm
Max. positioning speed120 m/min
X,Y axle Max. accelerate speed1.0G
Cooling formWater cooling
Laser wavelength1070nm


Output power of laser source



500W/1000W / 1500W / 2000W

2500W / 3000W / 4000W

(Optional)

Min. cutting gap≤ 0.1 mm
Positioning accuracy of X, Y and Z axles± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles± 0.01 mm
Thickness of cutting material (according to material)0.2 - 25 mm
Driver modelImported servo motor
Power requirement380V, 50/60 Hz
Working temperature0-45℃
Continuous working time24 Hours
Machine weightAbout 12000 Kgs
Total protection level of power supplyIP54

Detailed Images


Name: Machine body and accessoriea.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation.
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driverThe imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
Name:Precision Linear GuidesAdvanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting headThe contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
Name:Laser sourcefast speed,high precision cutting line, and smooth cutting edge

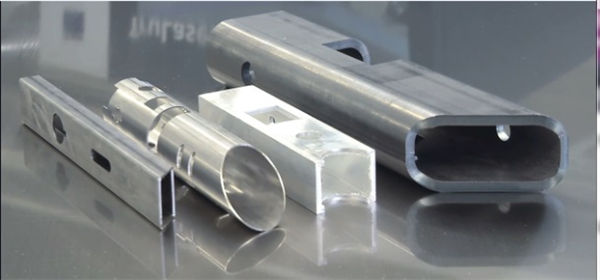

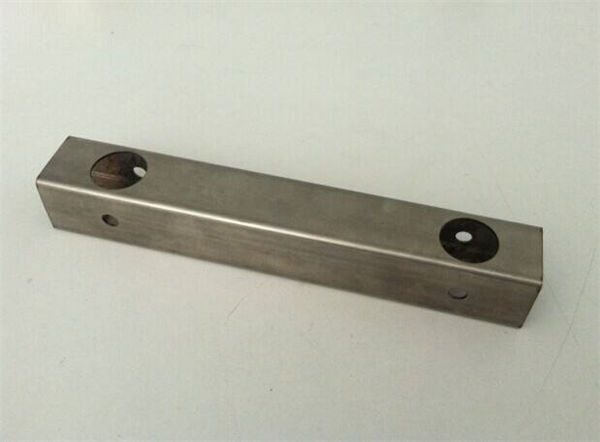

Cutting Samples


Training


After signing the contract , your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 1-3 days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting;
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation
