cnc laser cutting machine for stainless steel open structurecnc laser cutting machine for stainless steel open structure

Product Details

Certification: ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: wooden case

Delivery Time: 15 working days

Supply Ability: 2000 sets

Detailed Product Description

Product Name:	Fiber Laser Cutting Machine	Laser Type:	Fiber Laser
Laser Power:	500w,800w,1000w	Working Area:	3000*1500mm
Name:	Cnc Laser Cutting Machine	Certification:	ISO9001:2008

Features

1. The double ball screw closedloop system and imported open CNC system enable high processing accuracy and high working efficiency during high speed cutting.
2. Standard collocation of 500W fiber laser generator and optional 400W-2000W fiber laser generator ensures low operation and maintenance cost.
3. Open structure is easy and convenient for material loading and unloading.
4. Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
5. Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials.
6. Easy operation and low cost.
7. Optimized optical lens, specially designed nozzle and sensor technology realize smoother and more stable cutting.

Technical parameters

^{Laser type}	^{Fiber laser}
^{Response time}	^0.8ms
^{Laser power}	^{300/500/1000W}
^{Engraving area}	^1300×2500mm
^{Optical maser wavelength}	^1080nm
^{Cutting speed}	^0-800mm/s
^{Engraving speed}	^0-1500mm/s
^{Locating precision}	^{±0.01 mm}
^{Resetting accuracy}	^±0.05mm
^{Working voltage}	^{AC220V ±10%.50-60HZ}
^{Machine power}	^1250W
^{Operating temperature}	^0-45°C
^{Operating humidity}	^5-95%
^{Minimum character English}	^1×1mm
^{Graphic format supported}	^{BMP, PLT,DST, DXF,and AI}
^{Driving system}	^Stepper
^{Control software}	^{CorellLASER,CorelDraw,laserdrw}
^{Comunication interface}	^{Windows XP / Win 7 / Win 8}
^{Cooling mode}	^{Water cooling}
^{Compatible software}	^{Coreldraw auto CAD photoshop}
^{Machine size}	^{220033001100mm}
^{Machine weight}	^2000KG
^{Packing size}	^{230034001200mm}
^{Weight with packing}	^2300KG

Application of Cutting Machine Fiber Laser

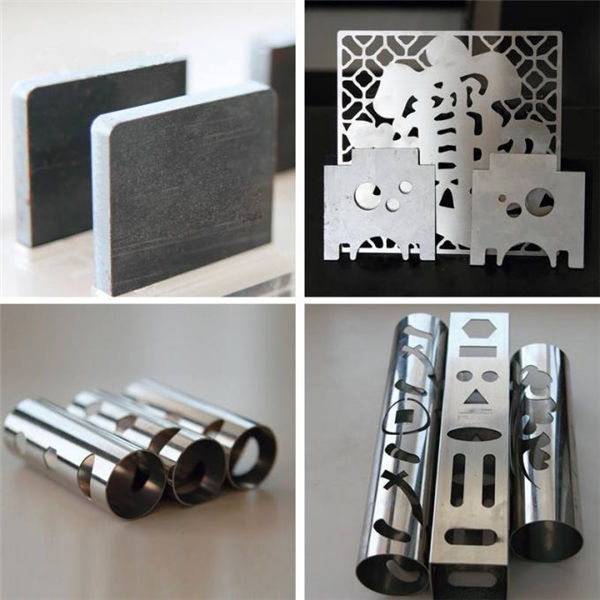

Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries: Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, etc.

500w fiber speed for example

^Material	^m/min
^{carbon steel 1mm}	⁸
^{carbon steel 2mm}	^4.2
^{carbon steel 3mm}	^2.1
^{carbon steel 4mm}	^1.2
^{stainless steel 1mm}	^7.2
^{stainless steel 1.5mm}	³
^{stainless steel 2mm}	^1.8
^{galvanized sheet0.8mm}	⁵
^{galvanized sheet1.2mm}	^2.6
^{galvanized sheet1.5mm}	^1.8
