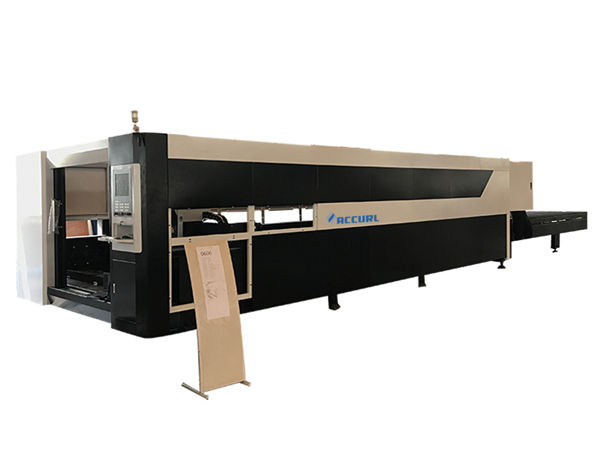

1.5kw industrial cnc laser cutting machine / equipment 380v , 1 year warranty

Product Details

Certification: ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: Wooden case

Delivery Time: 7-15 days

Supply Ability: 1 units/ month

Detailed Product Description

Product Name:	Fiber Laser Cutting Machine	Laser Power:	1000w 1500w
Laser Wavelength:	1080nm	Working Area:	3000*1500mm
Cutting Thickness:	0-16MM (depends On Laser Power)	Power Supply:	380v
Warranty:	1 Year	Laser Type:	Fiber Laser

Product Description of Metal Sheet Laser Cutter

The laser cutting machine is fiber laser type designed for efficient processing of carbon steel,stainless steel,aluminum,brass and many more. Available in different workstations sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.

Cutting range 1500*3000mm,automatic exchange worktables,suitable for of stainless steel, carbon steel,aluminum,brass,make cutting become simple.

It has heavy and strong structure, high performance and can works stably more than 10 years without problem.

Metal Sheet Laser Cutter Advantages

The whole fiber laser cutting machine for metal consist of machine This system consist of machine tool, motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts, so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Technical Specifications

^{Laser wavelength}	^1080nm
^{Cutting thickness}	^0.2-16mm
^{Laser output power}	^1000W
^{Maximum processing range}	^{3000 *1500mm}
^{Machine drive mode}	^{imported rack gear and pinon drive}
^{Y X. axis positioning accuracy}	^±0.01mm
^{X.Y axis repeat positioning accuracy}	^±0.01mm
^{Power supply mode}	^{380V / 50Hz}
^{Maximum cutting speed}	^45m/min
^{Minimum cutting line width}	^0.02mm
^{Cooling mode}	^{3P Water cooling}

Laser Cutting Machines Details

Application Industry

Applied to the sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automotive, food machinery, textile machinery,engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, gifts, tooling, decoration, advertising , metal external processing,processing, and other kitchenware manufacturing and processing industries.

Application Materials

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate,copper and many kinds of metal materials cutting and so on.
