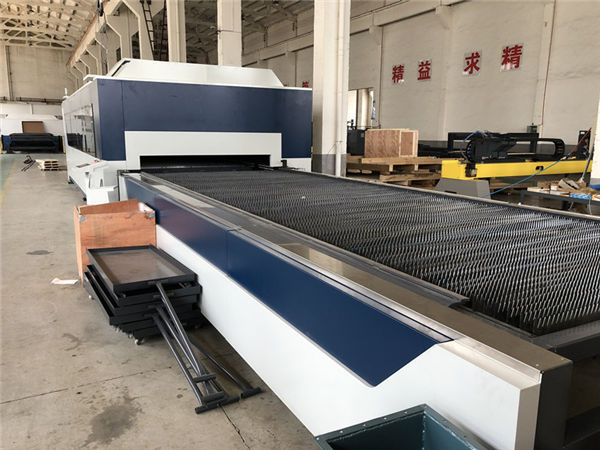

architectural model metal laser cutting machine water cooling 3 axis laser cutter

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*40GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description

Application::	All Metal Material	Cutting Thickness:	SS Upto 12mm, MS Upto 22cm
Laser Type::	Imported Original Fiber Laser	Max Cutting Thickness:	20mm/CS; 10mm/SS
Min.line Width:	0.1mm	Control Software::	Cypcut
Graphic Format Supported::	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Brand Name::	TAIYI LASER
Repeating Accuracy::	+/-0.03mm	Operating Temperature::	0°C-45°C
Cooling Mode:	Water Cooling	Laser Source:	IPG/Nlight/Raycus/Max
Voltage::	AC380V±10% 50HZ(60HZ)	Cutting Area:	3000x1500mm

Advantage of fiber laser machine

1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 60m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can
reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine,
fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate
is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser
cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.

Feature & Property

Adopting World Famous Germany Dlaser Fiber laser source and USA Laser Mech cutting head & Dynamic Focus System , it can cut and punch different kind of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Large format cutting area meets the demands of various kinds of metal processing.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path.It greatly reduces the machines fault rate and prolongs the working life.

Specification

Laser source medium	Fiber
Cutting range (L * W)	3000 mm × 15000 mm
Z axle stroke	250 mm
Max. positioning speed	120 m/min
X,Y axle Max. accelerate speed	1.0G
Cooling form	Water cooling
Laser wavelength	1070nm
Output power of laser source	500W/1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional)
Min. cutting gap	≤ 0.1 mm
Positioning accuracy of X, Y and Z axles	± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles	± 0.01 mm
Thickness of cutting material (according to material)	0.2 - 25 mm
Driver model	Imported servo motor
Power requirement	380V, 50/60 Hz
Working temperature	0-45℃
Continuous working time	24 Hours
Machine weight	About 12000 Kgs
Total protection level of power supply	IP54

Cutting materials

The fiber laser can cut all kinds of non ferrous metals, such as copper,aluminum,this high reflective materials, and tungsten,can also cut stainless steel,carbon steel, manganese steel,galvanized sheet,aluminum platform gold alloy plate, and other rare metals.

Application industry

The fiber laser cutting machine can be widely used in aerospace, aviation, electronics, elevators, medical equipment, kitchen electrical, auto parts, electrical equipment, gold plated chassis cabinets,mechanical equipment,lighting hardware,advertising signs, display equipment,all kinds of metal products, sheet metal cutting processing and other industries.

Pre-sale service

1. Free sample cutting,
For free sample cutting/testing, please send us your CAD file, we will do cutting here and make video to show you the cutting ,or send sample to you check cutting quality.
2. Customized machine design
According to customer’s application, we may revise our machine accordingly for customer’s convenience and high production efficiency.

Service after sales

A. Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype….
B. We offer technician to customer's site for installation and training, customer shall cover visa, ticket, local living cost.
C. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance.
During training in our workshop, we offer free training and living cost for 7 days, limit 2 people.

Warranty

a).1Year for the whole machine(Man-made Damage is negotiated.).
b).Laser source 2 Years warranty
c).Lifelong maintenance and spare parts supply
d).Free training for operation staffs. (engineer can go abroad is negotiated.)

FAQ

Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.

Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".

Q4:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
