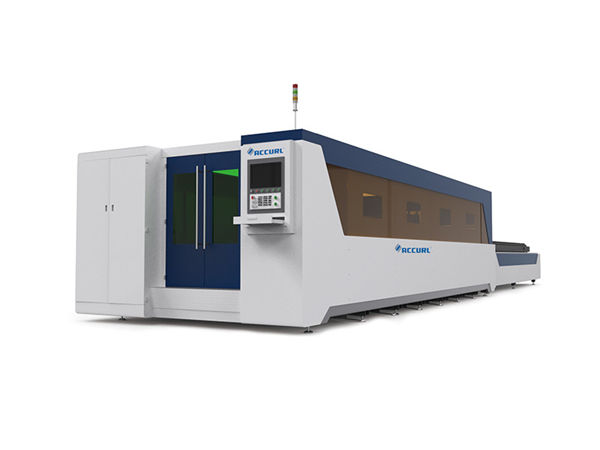

stable fiber laser cutting equipment , steel plate laser cutting machine high performance

Product Details

Certification: ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: Wooden case

Delivery Time: 7-15 days

Supply Ability: 1 units/ month

Detailed Product Description

Product Name:	Metal Sheet Laser Cutter	Laser Power:	1000w 1500w
Laser Wavelength:	1080nm	Working Area:	3000*1500mm
Cutting Thickness:	0-16MM (depends On Laser Power)	Power Supply:	380v
Warranty:	1 Year

Product Desciption of Metal Sheet Laser Cutter

1. Integrated machine design:left and right collecting drawer on the left and right side of the machine,highly saving space.
2. Stability and reliability of light path system and control system.
3. Fiber laser has high and stable function and lifespan which is over 100000 hours.
4. Higher cutting quality and efficiency with cutting speed being up to 25m/min with perfect cutting edge.
5. High performance reducer, gear and rack; Japanese guide and ball screw.

Metal Sheet Laser Cutter Advantages

(1) Fiber laser cutting machine is for metal precise cutting powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc.
(2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.
(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.
(4) software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.

Technical Specifications

^{Laser wavelength}	^1080nm
^{Cutting thickness}	^0.2-16mm
^{Laser output power}	^1000W
^{Maximum processing range}	^{3000 *1500mm}
^{Machine drive mode}	^{imported rack gear and pinon drive}
^{Y X. axis positioning accuracy}	^±0.01mm
^{X.Y axis repeat positioning accuracy}	^±0.01mm
^{Power supply mode}	^{380V / 50Hz}
^{Maximum cutting speed}	^45m/min
^{Minimum cutting line width}	^0.02mm
^{Cooling mode}	^{3P Water cooling}

Accessories

Application Industry

Applied to the sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automotive, food machinery, textile machinery,engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, gifts, tooling, decoration, advertising , metal external processing,processing, and other kitchenware manufacturing and processing industries.

Application Materials

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate,copper and many kinds of metal materials cutting and so on.
