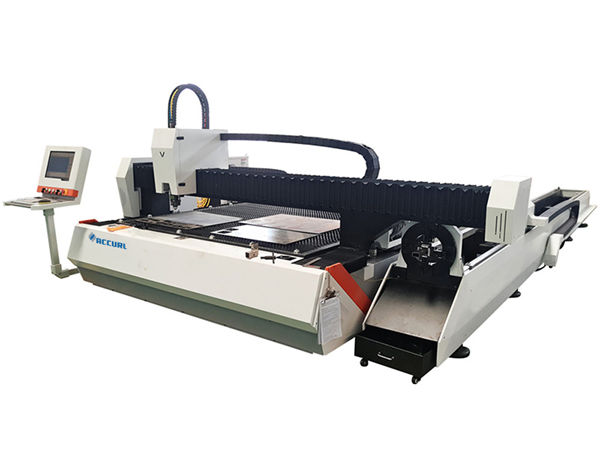

servo motor fiber laser tube cutting machine no noise with water cooling system

Product Details

Certification: ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: wooden case

Delivery Time: 15 days

Supply Ability: 1000 units

Detailed Product Description

Product Name:	Fiber Laser Cutting Machine For Metal Pipes	Laser Type:	Fiber Laser
Laser Power:	500w/800w/1000w	Laser Application:	Metal Tube Cutting
Cooling:	Water Cooling	Power Supply:	380v
Compatible Software:	Coreldraw,Autocad

One Machine,Dual Use ,can cut metal tube and metal plate by one time
In order to meet the increasingly complex needs of consumers, Rise Laser is targeted at market demand, independently developed RL3015 sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time

Metal fiber laser cutting machine

1. Compare with the plasma cutting, it has the high precision cutting for different kinds of metal materials, like cutting stainless steel, carbon steel, alloy steel, spring steel, aluminum, copper, silver, titanium and other metal materials below 6 mm.
2. Compare with the NC, which can cut any complicated process and shape.No noise and no need to open any moulds at all.
3. Compare with linear cutting, which has much faster speed,100 times higher than it.
4. Double lead screw to drive, Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, without later process
5. High performance/price ratio: the price is only 1/8 of the similar CO2 laser cutting machine and 2/5 of the equivalent NC Punch
6. Low use cost: only USD2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine (USD22-USD35 per hour)
7. Low follow-up maintenance cost: only 1/10-1/15 of the similar CO2 laser cutting machine and 1/3-1/4 the equivalent NC Punch
8. Steady performance: as a mature laser apparatus, the Fiber laser cutting machine is suitable for most metal manufacturing and processing industry.

Main Features

1. Spare parts: Adopt original imported servo motor, gear reducer, reducer, rail etc.
2. Electrical installation: Strong and weak electricity assemblied seperately. It reduces the interruption and improves response and movement speed effectively for fiber machine.
3. Precision: Adopt high precision grinding, imported rail and laser head. At the same time, with strict assembly process, make sure fiber laser machine with high speed and precision.
4. Cutting: Adopt imported laser head and spare parts to get the best cutting effect.
5. Laser device: Customers can choose domestic and imported laser device with maintenance-free

Technical Parameters

^{Laser type}	^{Maxphotonics fiber laser}
^{Laser power}	^{500w 800w 1000w 2000w 3000w fiber optional}
^{Cutting area}	^{1500mm*3000mm}
^{Whole machine size}	^{13607801100mm}
^{Engraving speed}	^{0 - 60,000mm/min}
^{Resetting positioning accuracy}	^±0.05mm
^{Working voltage}	^{AC 110 - 220V±10%, 50 - 60Hz}
^{Gross power}	^<1,000W
^{Operating temperature}	^{0 - 45°C}
^{Operating humidity}	^{5- 95%}
^{Minimum shaping character}	^{English 1 x 1mm}
^{Graphic format supported}	^{BMP,PLT, DST, DXF, and AI}
^{Driving system}	^{500w 800w 1000w 2000w 3000w fiber optional}
^{Cooling mode}	^{water-cooling and protection system}
^{Auxiliary equipments}	^{Exhaust-fans, air-exhaust pipe}
^{Controlling software}	^{Cypcut control system}
^{Compatible software}	^{CorelDraw AutoCAD Photoshop}
^{Net Weight}	^{3000kg(depends on models)}

Applications of Metal Fiber Laser Cutting Machine

Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
Application Industries: Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
