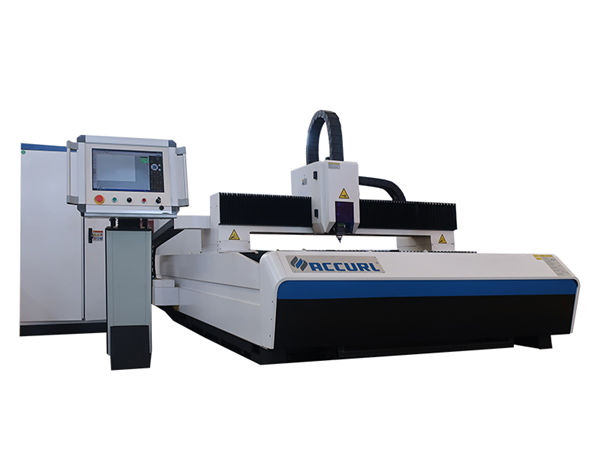

carbon steel plate laser cutting cnc machine , fiber laser cutting equipment

carbon steel plate laser cutting cnc machine , fiber laser cutting equipment

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: 42000-58000 USD
Packaging Details: standard package, wooden box for 500w fiber laser cutting machine
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets per month

Detailed Product Description

Product Name:Carbon Steel Plate CNC Laser Cutter , Optic Fiber Laser Cutting MachineLaser Power:500W
Max Moving Speed:80m/minControl System:±0.03mm
Power Supply:380V 50HzWarranty:1 Year

Machine Application

Applicable Material:
Fiber Laser Cutting machine is used for cutting sheet metal&pipes:
Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum, Copper, Brass, Bronze, Gold, Silver, Titanium, etc..

Applicable Industries:
Fiber Laser Cutting machine is mainly applied in metal processing: metal plate&tubes, secure door, charging pile, auto parts, spaceflight, electronic parts, subway parts, machinery, precision components, ships, elevator, kitchenware, gifts and crafts, , metal art ware, tool processing, adornment, advertising letters, ironware, chassis, racks and cabinets, hardware, glasses frame, nameplates, etc..


Laser SourceIPG/Nlight/Raycus/Max
Machine Bodygantry structure
Max running speed120m/min
X/Y positioning accuracy±0.03mm
Power Supply380V 50Hz/60Hz
X/Y repeated location precision±0.03mm
Running Temperature0°C-40°C
Max Acceleration1.2G
Machine gross power8KW
Applied MaterialsMild steel, stainless steel and other kinds of metallic sheets
Cutting Area3000mm*1500mm
Total Weight5600KGS


Laser PowerMax cutting thickness
Carbon steel(mm)Stainless steel(mm)Aluminum (mm)Brass


Above parameter for reference only

Main Features

1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.

Product Application

Fiber lasers are the newest development in laser cutting. The laser beam is created by an active fiber and transmitted over a transport fiber to the machine cutting head. Fiber lasers are significantly smaller than CO₂ lasers and generate twice as much power from the same amount of current. A fiber cutting system is primarily suited for processing thin to medium-thick sheet metal. It also cuts non-ferrous metals (copper and brass).
CNC fiber laser cutting is are capable of processing various metal types and play an essential part in industrial and commercial activities.
This machine widely applied in
Electrical equipment
Its 50%-70% components are made by laser processing. At the same time, in terms of automotive decoration, laser cutting machine meets the needs of personalized customization with its flexibility, precision and adaptability.
Mechanical equipment
The application of laser processing technology in the manufacturing of mechanical equipment includes laser welding, laser cutting, laser drilling, laser surface treatment, laser material increasing manufacturing and so on, in which laser cutting accounts for more than 70% of the total output of laser processing.
Electrical equipment
Laser cutting machine in the electrical industry is mainly used for the appearance of sheet metal parts and assembly of electrical components, thin steel parts cutting.
Hotel kitchen equipment
The use of laser cutting technology in hotel kitchen equipment not only makes the processing speed, efficiency and cost low, but also improves the cutting precision of the kitchen utensils, improves the quality of the products, and shortens the production cycle.
Elevator equipment
Laser cutting technology has won the favor of the elevator industry with its extremely fast cutting speed and cutting quality.
Advertising logo
The beautiful billboard is made of laser technology, in the advertising industry, the use of fiber laser cutting machine is the most, light, sound, action and other magical effects of laser technology performance thoroughly.
Sheet metal making
Laser cutting machine has brought about a great technological revolution for sheet metal processing.
