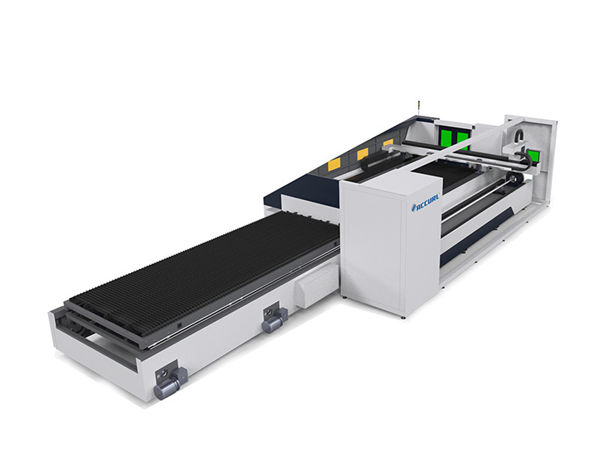

6000mm metal tube laser cutting machine automatic focus high precision

6000mm metal tube laser cutting machine automatic focus high precision

Product Details


Certification: CE / FDA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD Per SET
Packaging Details: The fiber laser cutting machine will be delivered by wooden case
Delivery Time: 30 Work Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000 Units per year

Detailed Product Description


Laser Type:Fiber Laser SourceCutting Area:Diameter 20-200mm
Cooling Mode:Water CoolingApplication:Applicable Material
Working Voltage:380V/50HzTransmission Method:Gear And Rack
Laser Power:1000WWorktable Max Load:1000kgs
X/Y Axis Positio:0.05/1000mmClass:Class 4 Laser

Fiber Metal Laser Cutting Machine Features


The High-power laser cutting machine with the highest precision in China, it can cut metal door design with big size and perfectly cut up to 22mm mild steel,12mm stainless steel,10mm aluminum,5mm brass,4mm copper and 4mm galvanized steel sheets.

Machine Features


The model RL-3015-800PT is the new design full closed fiber laser cutting machine with dual-working table from golden laser,and it adopts modern advanced cutting system,auto-focus.
The imported high precision fiber laser generator,ensure the high speeding,high precision.
Full protective enclosure design provides safety protection from unseen laser radiation and mechanical movement,closed proceed environments,safety and environment-friendly.
Pallet working table saves feeding time.
Drawer style tray makes easy collecting and cleaning for the scraps and small parts.
Gantry double driving structure, high damping bed, good rigidity, high speed and acceleration.
The world’s leading fiber laser resonator and electronic components to ensure machine superior stability.

Product Description


Laser Power1000Watt
Laser SourceWorld Famous Germany Fiber laser technology
Laser TypeFiber Laser
Laser TechnologyGermany Technology
XYZ Working area1500*3000*150 (mm)
Max. Cutting Thickness1000w (1-16mm Carbon Steel)
Max. Cutting Speed0-20 Meters / Min (up to materials)
Laser wavelength1070nm
Minimum line width≤0.1mm
Location precision≤±0.05mm
Re-location precision±0.02mm
Max. moving speed100m/min
Supporting FormatPLT, DXF, BMP, AI
Power demand380V/50Hz
Cooling WayWater Cooling
Worktable max. load1000KGS
Transmission MethodBall Screw Transmission
Table-driven systemJapanese Imported Panasonic Servo Motor & Driving System
Focus MethodFollowing and Automatic Adjust Focus
Control MethodOffline Movement Control
Control softwarePerfect Laser Professional Laser Cutting Software

Advantages of Laser Cutting Machine


1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality
2) High cutting speed: Cutting speed is more than 20m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.

Cutting Pipe Detail Specification


Cutting Length6000mm
Diameter20mm-200mm
Min remaining material250mm
X axis230mm
Y axis6500mm
Z axis175mm
Position accuracy0.05mm
Reposition accuracy0.03mm
Max moving speed for X axis40m/min
Max moving speed for Y axis500mm/s
Acceleration1 G
Size(L*W*H)12000*1800*2400mm
Weight3800kg

Advantage of Metal Tube Laser Cutting Machine


1. Electric-driver motor in rotary device adjust speed freely, Easy-work, low noisy,high rotary speed,high accuracy.
2. Intersecting line can be cut. Best choice for tubular construction.
3.Imported high precision transmission device which is perfectly work with servo system, thus it can make sure cutting precision and efficiency.
4. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
5. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
6. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
7. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
8. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
9. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
10. Easy operations: fiber line transmission, no adjustment of optical path.

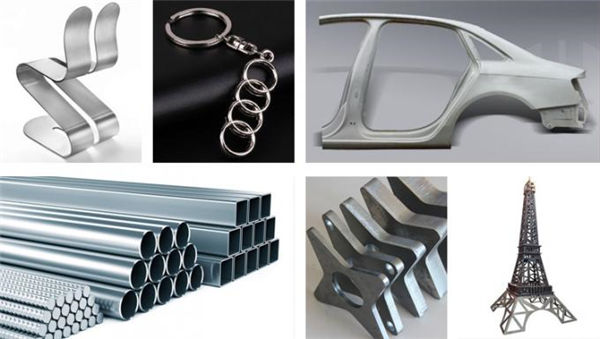

Applicable materials


Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applicable Industry


Sheet metal, hardware, kitchenware, electronic, automotive parts, glass, advertising, craft, lighting, decoration, jewelry, etc
Applicable Material:
Specially for carbon steel, stainless steel, galvanized steel, alloy, titanium, aluminum, brass, copper and other metal sheets.
