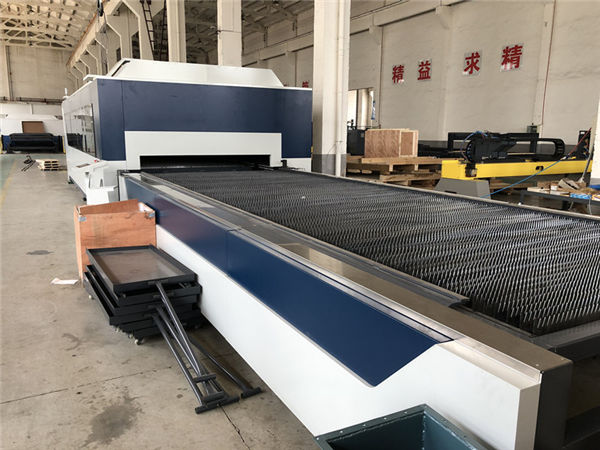

2kw cnc fiber laser cutter , laser cutting and engraving machine with exchange table

Product Details

Certification: CE / FDA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD Per SET
Packaging Details: Wooden box with iron binding belt
Delivery Time: 20-30 Work Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 Units per year

Detailed Product Description

Laser Type:	Fiber Laser Source	Cutting Area:	1500*3000mm
Cooling Mode:	Water Cooling	Application:	Metal Material Cutting
Focus Method:	Following And Automatic Adjust Focus	Transmission Method:	Gear And Rack
Worktable Max Load:	1000kgs	X/Y Axis Positio:	0.05/1000mm
CNC Or Not:	YES

Fiber Metal Laser Cutting Machine Features

The High-power laser cutting machine with the highest precision in China, it can cut metal door design with big size and perfectly cut up to 22mm mild steel,12mm stainless steel,10mm aluminum,5mm brass,4mm copper and 4mm galvanized steel sheets.

Parameter:
Name	Fully Closed Type 2KW Metal Fiber Laser Cutting Machine With Exchange Tablewith protective cover
Model	RL-3015-2000
Working area	1500*3000mm
Laser power	2000w
Laser type	Fiber laser
Cooling ways	Water cooling
Mininum line width	0.1mm
Cutting speed	0-35m/min
Max moving speed	90m/min
Locating accuracy	≤0.03mm
repeatable accuracy	≤0.02mm
Maximum Acceleration	1.5G
Controlling software	CYPCUT
Format supported	PLT,DXF,AI,G code,etc
Software environment	Windows xp/7/8/10
Compatible software	Coreldraw,Autocad
Driving system	High precision servo motor with gear and rack
Auxiliary accessories	Exhaust fan,fume tubes,water chiller,tools box
Working table	Jagged blade working table (Sawteeth)
Applicable materials	Carbon steel,stainess steel,brass,copper,aluminum,etc
Power supply	220v/380v/440v,50hz/60hz
Working environment Temperature	0-45℃,Humidity5-95%(no condensate water.)
Continuous working time	24 hrs each day
Dimension	815028252125mm

Machine Features

The model GF 1530JH is the new design full closed fiber laser cutting machine with dual-working table from golden laser,and it adopts modern advanced cutting system,auto-focus.
The imported high precision fiber laser generator,ensure the high speeding,high precision.
Full protective enclosure design provides safety protection from unseen laser radiation and mechanical movement,closed proceed environments,safety and environment-friendly.
Pallet working table saves feeding time.
Drawer style tray makes easy collecting and cleaning for the scraps and small parts.
Gantry double driving structure, high damping bed, good rigidity, high speed and acceleration.
The world’s leading fiber laser resonator and electronic components to ensure machine superior stability.

Production Checking

We buy the good quality raw materials for making our machine.
Before production,the raw materials for the machine are under strict quality control.
After the worker finished the production, our quality department will check the overall quality of the machine. If not pass our standard will rework.
Passed the quality standard we will install the machine and check the quality again then make sure each part is perfect.Then we will clean the machines and package it with anti-collision package edge, wooden box packaging (with steel wire reinforcement).

Applicable materials

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
