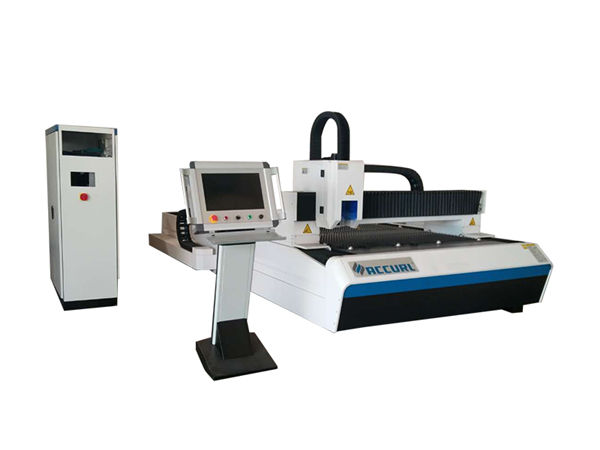

700w / 1000w stainless steel fiber laser cutting machine

700w / 1000w stainless steel fiber laser cutting machine

Product Details


Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*40GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description


Product Name:700W / 1000W Stainless Steel Fiber Laser Cutting Machine 3mm Cutting ThicknessCutting Thickness:SS Upto 3mm, Steel Upto 5mm
Laser Type::FiberCooling Mode::Water Cooling
Graphic Format Supported::AI, BMP, DST, DWG, DXF, DXP, LAS, PLTAfter-sales Service Provided::Engineers Available To Service Machinery Overseas
Repeating Accuracy::+-0.03mmLaser Source:Raycus/ IPG



Product Description


500W Fiber Laser Cutting Machine is applied for all metals cutting, Especially suitable for stainless steel, carbon steel, galvanized plate and so on.
Widely used in sheet metal products, steel structure, precision machinery, auto parts, glasses, jewelry,
nameplate, advertising, handicrafts, electronics, toys, packaging and other industries

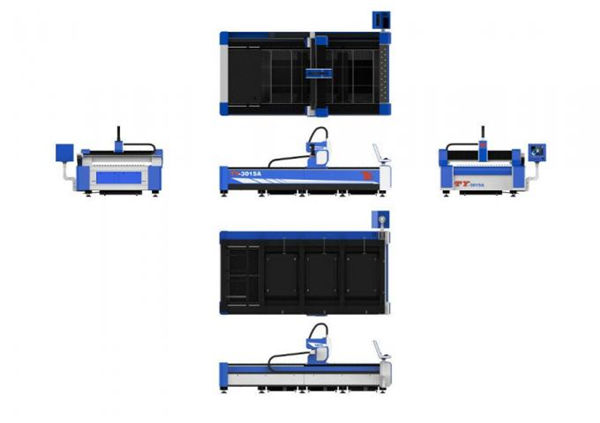

Machine body


1. Our Machine body with 8mm steel structure, 600℃ heat treatment, Precise welding, to make sure 20 years usage without deformation.

2. Gantry with magnesium alloy casting, Strong stability without deformation, Fast movement.

3. High efficiency zoning smoking system at both sides of machine body, Strong segmented dust and smoking collection, it will reduce harm to worker.

4. Imported precision flange reducer and servo motor, Fast running speed.

5. 70 blades and 6 slide bars on the machine bed, with close blades to reduce machine warning, slide bars working with cylinders to upload and download sheets easily.

6. Flexible loading box can be opended front and both sides which is convinient for machine working condition.

Specification


Laser source mediumFiber
Cutting range (L * W)3000*1500mm
Z axle stroke250 mm
Max. positioning speed120 m/min
X,Y axle Max. accelerate speed1.0G
Cooling formWater cooling
Laser wavelength1070nm


Output power of laser source



500W/1000W / 1500W / 2000W

2500W / 3000W / 4000W

(Optional)

Min. cutting gap≤ 0.1 mm
Positioning accuracy of X, Y and Z axles± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles± 0.01 mm
Thickness of cutting material (according to material)0.2 - 25 mm
Driver modelImported servo motor
Power requirement380V, 50/60 Hz
Working temperature0-45℃
Continuous working time24 Hours
Machine weightAbout 12000 Kgs
Total protection level of power supplyIP54

Applied Materials


Stainless Steel, Carbon Steel, Alloy Steel, Silicon Steel, Spring Steel, Galvanize Plate, Pickled Plate, Brass Plate, Copper Plate, Aluminum Plate, Etc

Advantages of Fiber laser cutting machine


1. Compare with traditional laser, fiber laser is more environmental protection:
2. Much lower power consumption: fiber laser's photoelectric conversion efficiency 15times higher than traditional laser.
3. Higher laser spot quality: single-module laser source
4. Lower consumption: Spare parts are protective lens and nozzle only. Electric consumption from 6KW to 16KW with different laser power.
5. Highly automation:Adopts digital control, we can import file from AUTO CAD to cutting software directly,Any artifacts can be cut, moreover there is intelligent typesetting function, thus can save raw material costs to the greatest extent.
6. High cutting efficiency:Due to the transmission properties of laser, laser cutting machine has equipped with many sets of CNC work bench to realize numerical control. You only need to change the CNC program to cut different shape, as well as for two-dimensional cutting, and three-dimensional cutting.

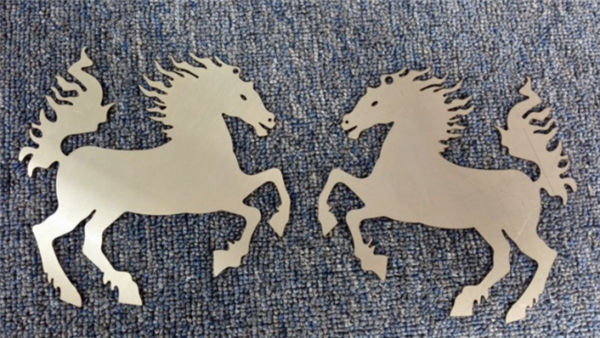

Cutting Samples


Training


After-sales service, from training to machine installation (3 ways):
1.Training video and user's manual in English to be offered for installation, operation, maintenance and trouble-shooting, and technical guide to be offered by e-mail, fax, telephone/whatsapp /skype//and so on, when you meet some problems of installation, using or adjusting.
2.Your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 3-5days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation.
3.Door-to-door instruction training service. visa, traveling expenses and accommodation will be at customer's cost. It's better to arrange a translator for both of our engineers during the training period. Training Time: 3-5days.
